| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,960 pcs
|
5960 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request | |
|
376 pcs
|
376 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Industrial Grade | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Operating Temperature | |
| SVHC Present |

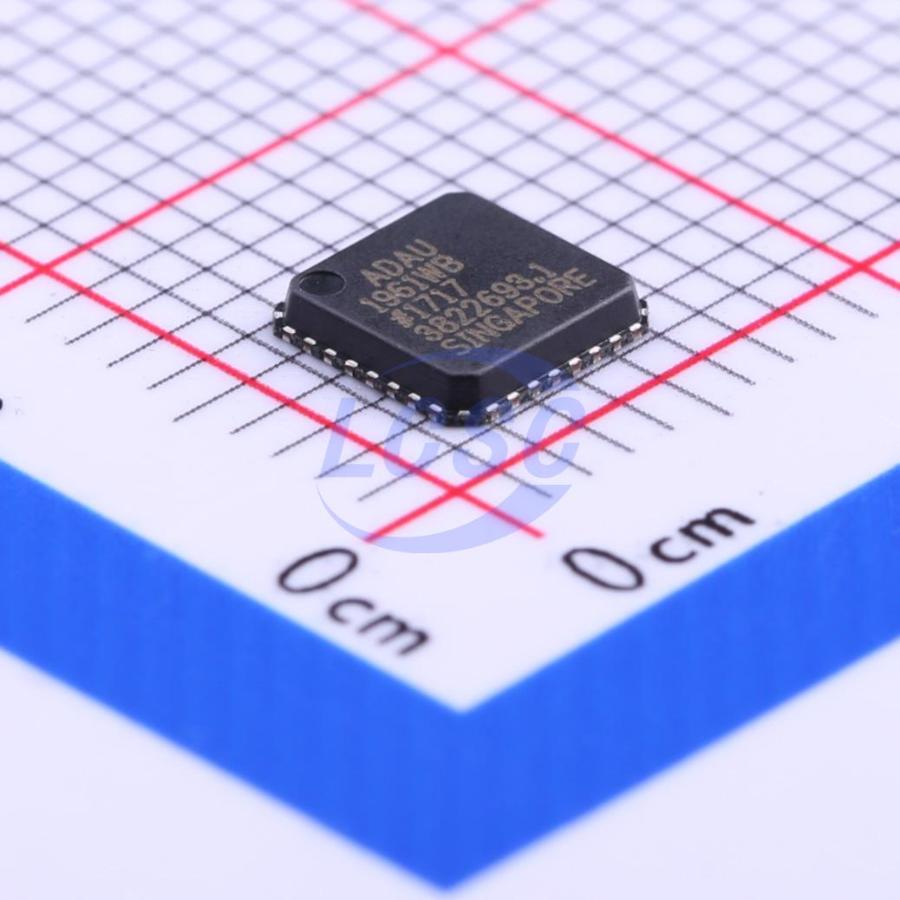

The ADAU1961WBCPZ is a high-performance audio codec designed for automotive applications by Analog Devices. This device supports stereo audio with low power consumption, a sampling rate of up to 96 kHz, and 24-bit resolution.
Key electrical specifications include operating supply voltages ranging from 2.97V to 3.65V for both analog (AVDD) and digital I/O (IOVDD). The digital output voltage (DVDDOUT) is typically 1.56V. The codec offers precise audio performance with a typical interchannel gain mismatch of ±0.3 dB, an offset error of ±22 mV, and a gain error of ±10%.
Performance metrics for Total Harmonic Distortion plus Noise (THD+N) are notable, with values as low as -61 dB in capless headphone mode at 16-ohm load and -76 dB in headphone output mode with a 10 k-ohm load. The operating temperature range is from -40°C to +105°C, making it suitable for demanding environments.
This audio codec integrates a Phase-Locked Loop (PLL) for flexible clock generation and management. It is designed for applications requiring high-quality audio processing in automotive systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ADAU1961WBCPZ operates with supply voltages between 2.97V and 3.65V for both AVDD and IOVDD.
The typical interchannel gain mismatch is ±0.3 dB.
The Total Harmonic Distortion + Noise in capless headphone mode is -61 dB at a 16-ohm load and -63 dB at a 32-ohm load.
The ADAU1961WBCPZ operates within a temperature range of -40°C to +105°C.
