ADATE320-1KCPZ

The ADATE320-1KCPZ from Analog Devices is a comprehensive single-chip solution for pin electronics functions, integrating a Driver, Comparator, and Active Load (DCL) with a Per Pin Parametric Measurement Unit (PPMU).

This device operates at a 1.25 GHz frequency with a 2.5 Gbps data rate. Key electrical specifications include a driver voltage range of -1.5 V to +4.5 V, precision trimmed termination of 50.0 Ω, and an unterminated swing from 50 mV to 6.0 V. It also features a 400 ps minimum pulse width and 25 ps deterministic jitter. The comparator offers differential and single-ended window modes with a 100 ps equivalent input rise/fall time. The PPMU provides a force voltage/compliance range of -1.5 V to +4.5 V across five current ranges.

Integrated 16-bit DACs with on-chip calibration registers handle DC level generation. The device supports low leakage mode, typically less than 5 nA. The ADATE320-1KCPZ has a power dissipation of 1.3 W per channel.

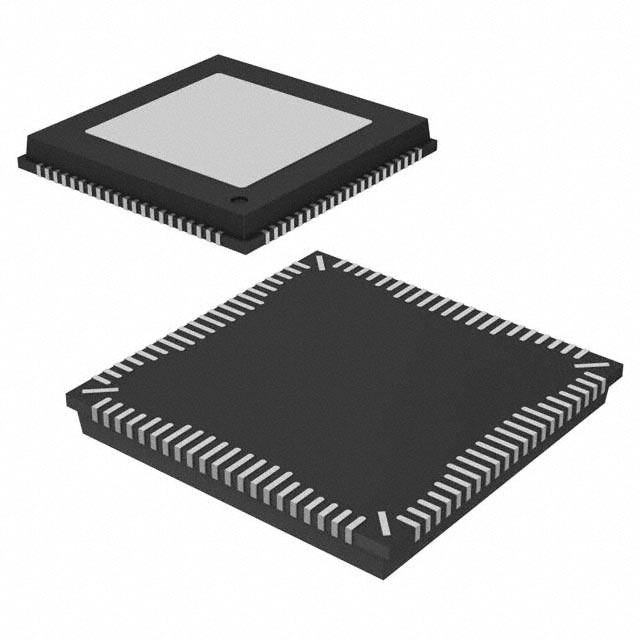

Packaged in an 84-lead LFCSP (10 mm x 10 mm) with surface mount, this IC is designed for applications such as automatic test equipment, semiconductor/board test systems, and instrumentation and characterization equipment.
