| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,448 pcs
|
1448 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Number of Bits | |
| Number of Channels | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Voltage |
The ADAS1000-1BCPZ-RL is a low-power, five-electrode electrocardiogram (ECG) analog front end IC manufactured by Analog Devices. This device is designed to measure biopotential signals and output digitized data. It offers 5 acquisition channels and one driven lead, with 19-bit resolution.
Key electrical specifications include a supply voltage range of 3.15V to 5.5V. The device supports various interface types such as SPI, QSPI, and DSP compatible serial interfaces. Power consumption is notably low, with typical values of 11 mW for 1 lead, 15 mW for 3 leads, and 21 mW for all electrodes.

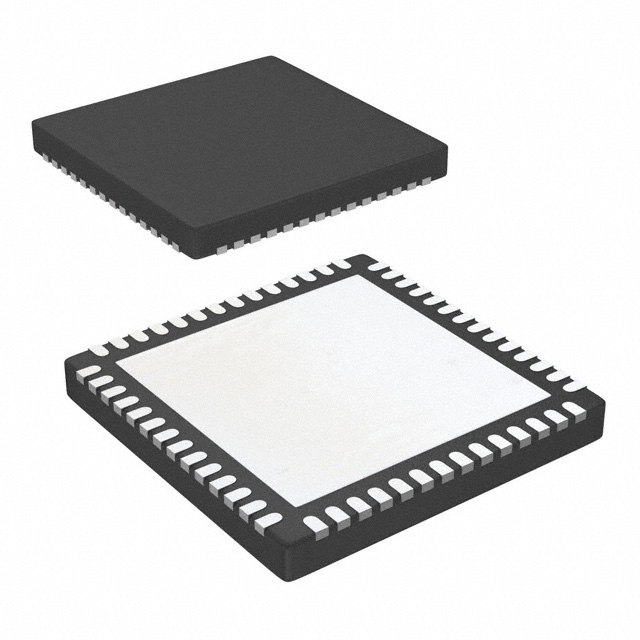

The ADAS1000-1BCPZ-RL is housed in a 56-lead LFCSP package, specifically a 56-VFQFN Exposed Pad, CSP, designed for surface mounting. This compact package makes it suitable for portable and battery-powered applications.
This AFE IC is designed for ECG monitoring and diagnostic applications, including bedside patient monitoring, portable telemetry, and Holter monitors. It supports various industry standards such as AAMI EC11 and IEC60601 series.
3.15V to 5.5V.
56-VFQFN Exposed Pad, CSP (56-LFCSP-VQ 9x9).
RoHS3 Compliant (unverified).
5 channels.
19 bits.
SPI, QSPI, DSP.
11 mW with 1 lead, 15 mW with 3 leads, 21 mW with all electrodes.
