| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

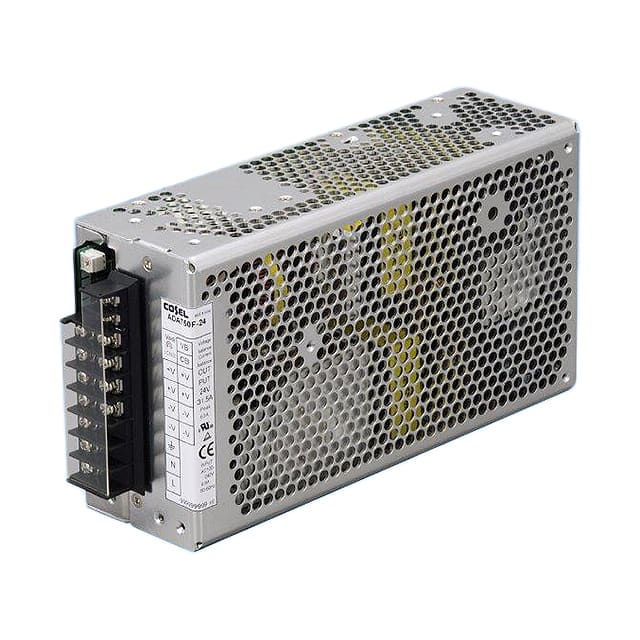

The Cosel ADA750F-24-CF is a versatile AC/DC power supply designed for ITE (Commercial) applications. It operates with a universal input voltage range of 85-264 VAC and offers a stable 24V output.
Key electrical specifications include a nominal output current of 19A, delivering up to 456W of power under convection cooling, and 756W with forced air. The unit boasts high efficiency, rated at 88% typical, and features power factor correction for improved performance. It includes overcurrent and overvoltage protection circuits for enhanced reliability.
Mechanically, this converter is designed for chassis mounting and features an enclosed, conformal coated type. Its dimensions are 175.5mm in length, 127.0mm in width, and 70.0mm in height. The operating temperature range is -10°C to 71°C with derating.
Compliance includes CE, CSA, cURus, TUV, and UL approvals, adhering to standards like 60950-1 and 62368-1. It also meets RoHS3 compliance.
The input voltage range is 85-264 VAC (50/60 Hz), with DC input also available (120-350V).
The nominal output voltage is 24V. Output current is 14A (convection) or 21A (forced air) at 100VAC input, and 15A (convection) or 25A (forced air) at 200VAC input.
The operating temperature range is -10°C to 71°C with derating.
It has overcurrent protection that works over 101% of peak current and recovers automatically, and overvoltage protection in the range of 31-34.5V.
Efficiency is 84% typical at 100VAC input and 86% typical at 200VAC input, both at full load.
Ripple and noise is 120mVp-p maximum at 0 to +50°C, and 160mVp-p maximum at -10 to 0°C.
Hold-up time is 20ms typical at 100VAC input and full load.
