| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
39 pcs
|
39 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Output Type | |
| SVHC Present | |
| Slew Rate | |
| Storage Temperature | |
| Tape & Reel |
The ADA4807-2ACPZ-R2 is a high-speed, voltage-feedback amplifier manufactured by Analog Devices Inc. This component integrates two independent amplifier circuits within a single package, designed for demanding applications requiring precise signal amplification.
Key electrical characteristics include a rail-to-rail output stage, enabling operation close to the power supply rails, and a wide -3dB bandwidth of 180 MHz. It boasts a high slew rate of 250V/µs, ensuring fast transient response. The input bias current is a low 1.2 µA, and the input offset voltage is typically 140 µV. The current consumption per channel is 1mA.

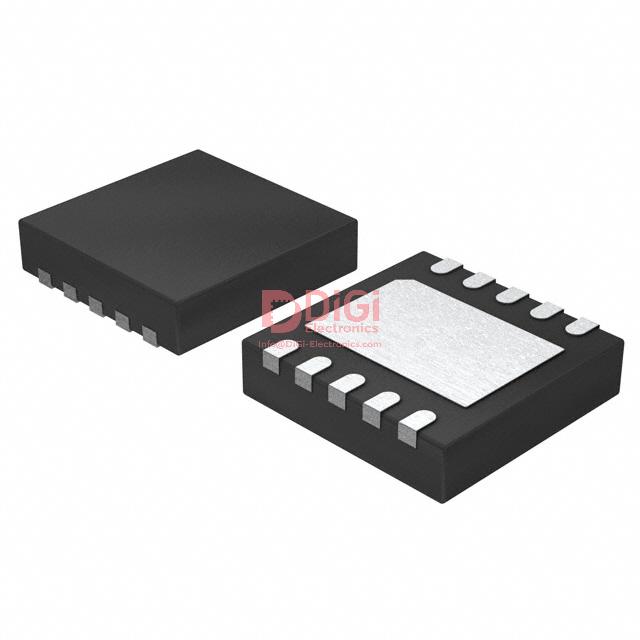

This amplifier is housed in a compact 10-LFCSP-WD (3x3 mm) surface-mount package, suitable for space-constrained designs. Its robust performance and specifications make it a suitable choice for various signal processing and amplification tasks in electronic systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.28 | $1.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ADA4807-2ACPZ-R2 is a voltage feedback amplifier.
There are 2 amplifier circuits in the ADA4807-2ACPZ-R2.
The ADA4807-2ACPZ-R2 has a rail-to-rail output type.
The slew rate of the ADA4807-2ACPZ-R2 is 250V/µs.
The -3dB bandwidth of the ADA4807-2ACPZ-R2 is 180 MHz.
The input bias current for the ADA4807-2ACPZ-R2 is 1.2 µA.
The input offset voltage of the ADA4807-2ACPZ-R2 is 140 µV.
