| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
284 pcs
|
284 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency | |
| Gain | |
| Mounting Type | |
| Noise Figure | |
| P1dB | |
| RF Type | |
| SVHC Present | |
| Supplier Device Package | |
| Tape & Reel | |
| Test Frequency | |
| Voltage Supply |

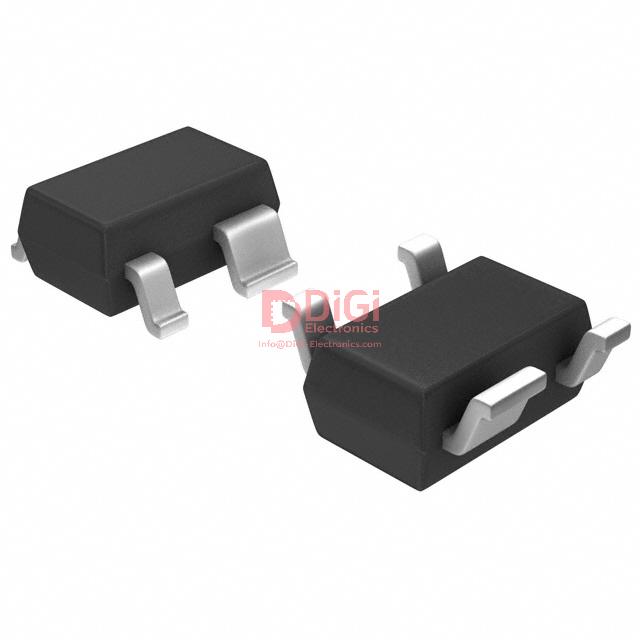

The ADA4543TR1G from Broadcom Limited is a versatile RF Amplifier IC suitable for a wide range of wireless communication applications, including Cellular, ISM, PCS, WLAN, and WLL.
This component operates across a broad frequency spectrum from 0Hz to 2.5GHz, offering a typical gain of 15.1dB and a noise figure of 3.7dB. It is designed for surface mount installation and comes in a compact SOT-343, SC70 4-Lead package.
The device operates with a supply voltage ranging from 3.1V to 3.8V and consumes a current between 10mA and 30mA. The P1dB is specified at 1.9dBm, and testing is conducted at 900MHz.
This RF amplifier is ideal for integration into compact electronic devices where efficient signal amplification is critical. Its specifications make it a suitable choice for various wireless communication modules and systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The frequency range is from DC to 2.5 GHz.
The typical gain is 15.1 dB.
The typical noise figure is 3.7 dB.
The typical P1dB is 1.9 dBm.
The supply voltage range is 3.1V to 3.8V.
The supply current is 10 mA to 30 mA.
The package type is SOT-343 (SC70 4-Lead).
