The ADA4304-3ACPZ-R7 is a 75 Ohm active RF splitter from Analog Devices, fabricated using a silicon germanium (SiGe) process. It is designed for applications where a lossless signal split is required, such as multituner digital set-top boxes, cable splitter modules, and digital cable-ready televisions.
Key electrical specifications include a 2.4 GHz bandwidth with 1 dB flatness from 54 MHz to 865 MHz. It offers a low noise figure of 4.6 dB and low distortion with Composite Second Order (CSO) at -62 dBc and Composite Triple Beat (CTB) at -72 dBc. The device provides a nominal 3 dB gain per output channel and 25 dB output-to-output isolation from 50 MHz to 1000 MHz.
This active splitter integrates a signal splitter element and a gain block into a single IC, simplifying designs and improving system performance compared to discrete passive splitter modules. It operates in the extended industrial temperature range of -40°C to +85°C.
The ADA4304-3ACPZ-R7 is available in a 16-lead, 3 mm × 3 mm LFCSP package, suitable for space-constrained applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency range is from 54 MHz to 865 MHz.
The gain per output channel is 3 dB.
The noise figure is 4.6 dB.

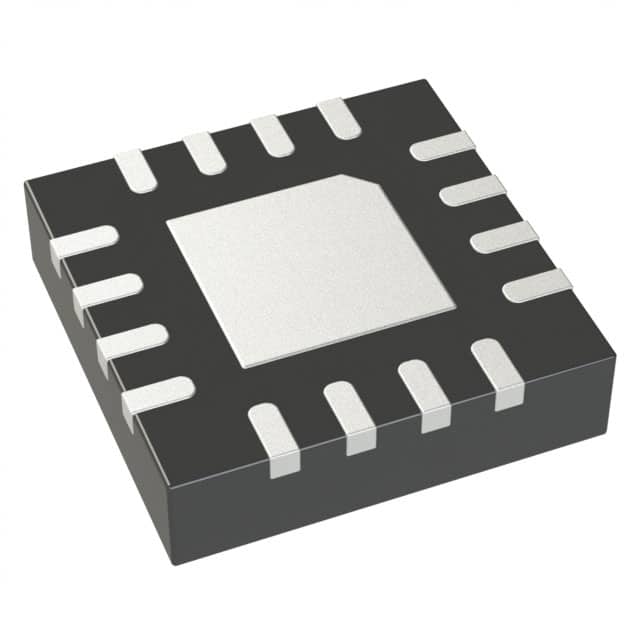

It is packaged in a 16-lead, 3 mm × 3 mm LFCSP with exposed pad.
The input and output impedance are both 75 Ω.
It operates from -40°C to +85°C.
