ADA-4789-BLKG
Broadcom Limited
The Broadcom Limited ADA-4789-BLKG is an RF amplifier designed for WLL and WLAN applications. It operates with a voltage range of 3.3V to 4.3V and features a gain of 16.2dB.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,000 pcs
|
9000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Gain | |
| Mounting Type | |
| Noise Figure | |
| P1dB | |
| RF Type | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Test Frequency | |
| Voltage |
The Broadcom Limited ADA-4789-TR1G is a surface-mount RF amplifier suitable for Wireless Local Loop (WLL) and Wireless Local Area Network (WLAN) applications. It offers a wide operating frequency range from 0Hz up to 2.5GHz.
Key electrical characteristics include a gain of 16.2dB and a P1dB (1dB compression point) of 16.2dBm. The amplifier exhibits a noise figure of 4.4dB and operates with a current draw of 90mA. The voltage supply range is between 3.3V and 4.3V.

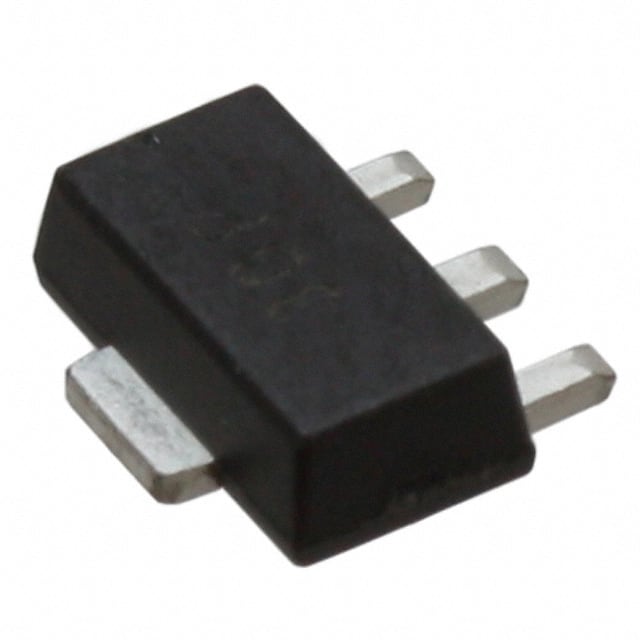

This component is housed in a TO-243AA package, also referred to as SOT-89. Its surface mount capability facilitates integration into various electronic designs.
Compliance information indicates RoHS3 compliance and an MSL 1 rating, signifying unlimited moisture sensitivity level. REACH status is noted as unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is between 3.3V and 4.3V.
The frequency range is from 0Hz to 2.5GHz.
The gain is 16.2dB.
The noise figure is 4.4dB.
It is supplied in a TO-243AA package, also known as SOT-89.
It is designed for surface mount installation.
Yes, it is RoHS3 compliant.
