| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Input Type | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output Type | |
| Resolution | |
| Supplier Device Package | |
| Supply Voltage | |
| Type |
The AD9977BBCZ is a highly integrated dual-channel CCD signal processor designed for high-speed digital video camera applications. Each channel operates at pixel rates up to 65 MHz and includes a complete analog front end with correlated double sampler (CDS), variable gain amplifier (VGA), and a 14-bit A/D converter.
The device features a Precision Timing core with 240 ps resolution at 65 MHz, enabling precise adjustment of high-speed clocks. It operates from a 1.8 V analog and digital core supply and communicates via a 3-wire serial interface with reduced range LVDS outputs.

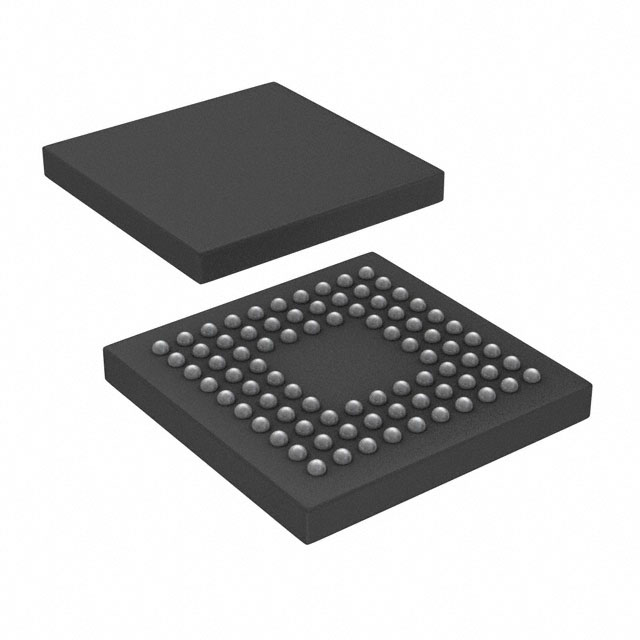

Packaged in a space-saving 6 mm × 6 mm 84-ball CSPBGA, the AD9977BBCZ is specified over an operating temperature range of -25°C to +85°C. It is suitable for professional HDTV camcorders, broadcast cameras, and industrial high-speed cameras.
1.8V
84-LFBGA, CSPBGA; supplier device package 84-CSPBGA (6x6)
-25°C to 85°C
RoHS3 compliant (unverified)
14-bit
65 MHz per channel
LVDS
