| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,500 pcs
|
5500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,060 pcs
|
2060 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Input Type | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output Type | |
| Resolution | |
| SVHC Present | |
| Supplier Device Package | |
| Supply Voltage | |
| Type |
The AD9974BBCZ is a dual-channel, 14-bit CCD signal processor from Analog Devices, designed for high-speed digital video camera applications. It integrates a complete analog front end (AFE) with a programmable timing driver, operating at pixel rates up to 65 MHz per channel.
Key specifications include a correlated double sampler (CDS) with selectable gains of -3 dB, 0 dB, +3 dB, and +6 dB, and a 10-bit variable gain amplifier (VGA) with a range of 6 dB to 42 dB. The precision timing core provides 240 ps resolution at 65 MHz. The device operates from a 1.8 V supply and draws 55 mA.

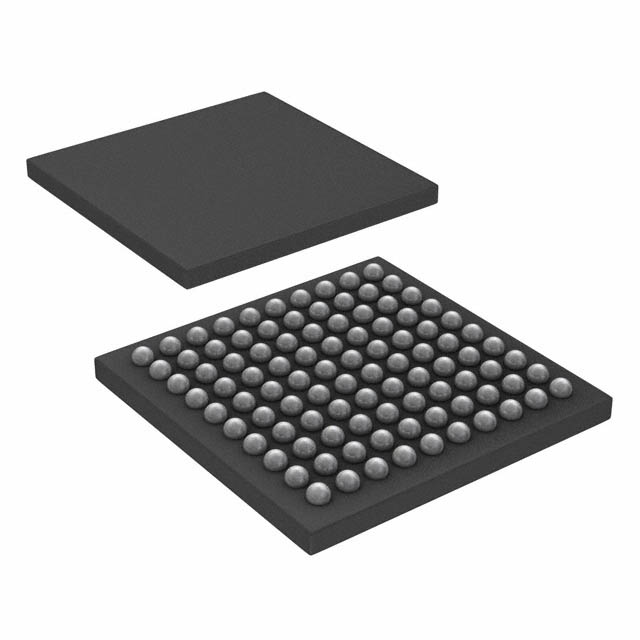

The processor is housed in a 100-lead CSPBGA package (9x9 mm) with surface mount mounting. It features a differential input and logic output, with a serial 3-wire interface for configuration. Operating temperature range is -25°C to +85°C.
The supply voltage range is 1.6 V to 1.8 V (typical 1.8 V).
The package is a 100-CSPBGA (9x9) surface mount package.
The operating temperature range is -25°C to 85°C.
Yes, it is RoHS3 compliant (unverified, low confidence).
The resolution is 14 bits.
The sampling rate is 65 MSPS (mega samples per second).
It has 2 channels (dual input).
