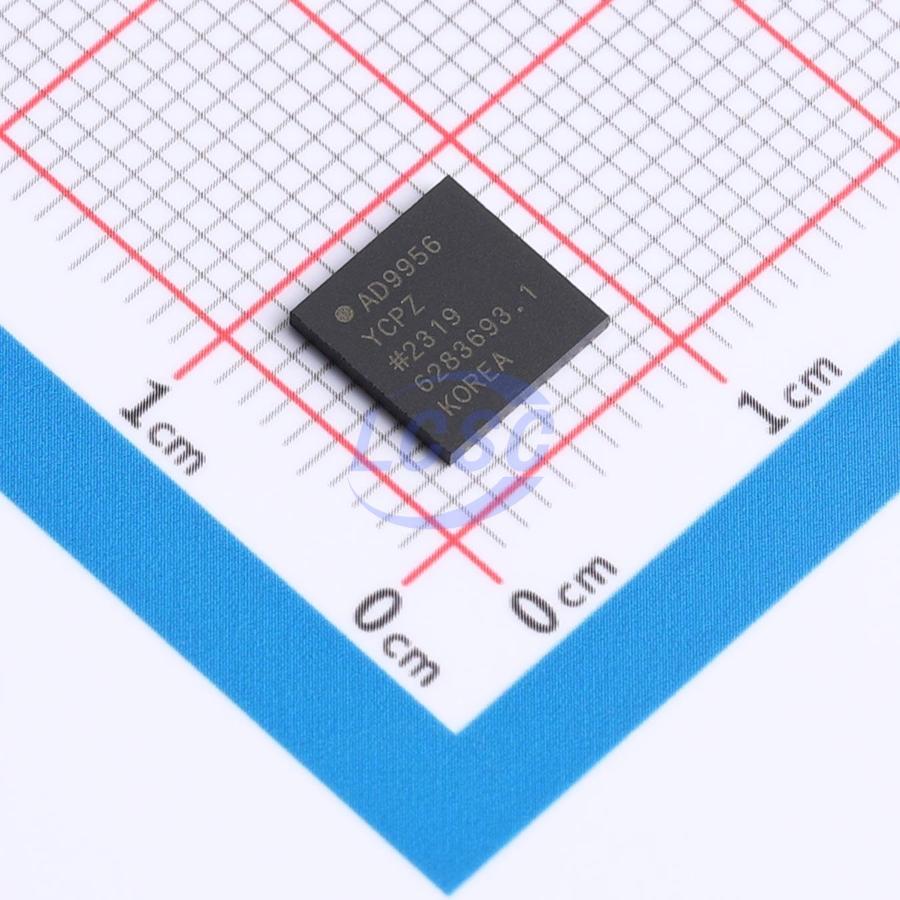

The AD9956YCPZ-REEL7 from Analog Devices is a 2.7 GHz DDS-based AgileRF synthesizer designed for agile LO frequency synthesis. It operates with a 400 MSPS internal DDS clock speed and features a 48-bit frequency tuning word for precise frequency control.
This synthesizer boasts excellent dynamic performance, including phase noise of ≤ -135 dBc/Hz at 1 KHz offset and -80 dB SFDR at 160 MHz. It includes a 14-bit DAC and supports phase modulation. The device operates with a 1.8 V core supply and a 3.3 V I/O supply, with programmable charge pump current up to 4 mA.
Packaged in a 48-lead LFCSP, the AD9956YCPZ-REEL7 is suitable for surface mounting. Its applications include FM chirp sources for radar and scanning systems, automotive radars, and test and measurement equipment.
Key features include automatic linear frequency sweeping, multichip synchronization, and a dual-mode PLL lock detect. The device also offers software-controlled power-down functionality.
| Qty | Low | High |
|---|---|---|
| 1+ | $79.28 | $79.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 125°C.
The package is 48-WFQFN Exposed Pad, CSP, also referred to as 48-LFCSP (7x7).
The RoHS status is RoHS3 Compliant.
The internal DDS clock speed is 400 MSPS.
The frequency tuning word width is 48 bits.
The integrated DAC has a resolution of 14 bits.
The phase noise is less than or equal to -135 dBc/Hz at a 1 KHz offset.
