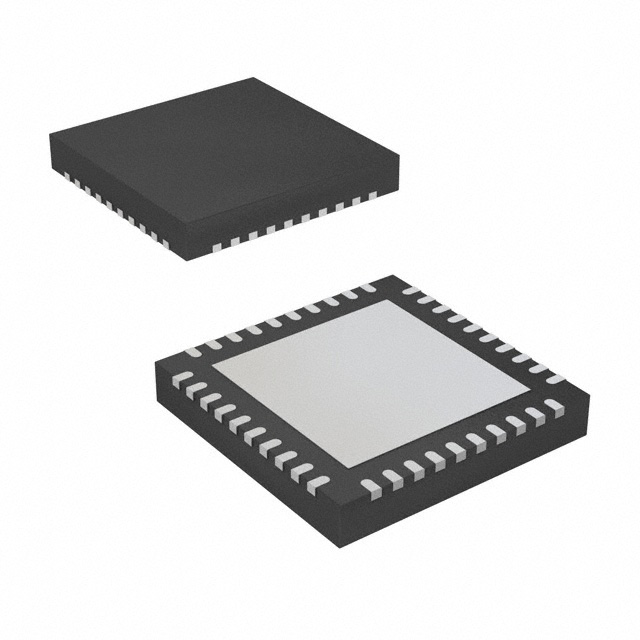

The AD9949AKCPZ is a highly integrated CCD signal processor designed for digital still camera and high-speed digital imaging applications. It combines a complete analog front end with a 12-bit, 36 MSPS analog-to-digital converter (ADC) and a programmable timing driver. The analog front end includes a correlated double sampler (CDS) with a gain range of 0 dB to 18 dB, a pixel gain amplifier (PxGA), and a variable gain amplifier (VGA) with a range of 6 dB to 42 dB. The Precision Timing core enables adjustment of high-speed clocks with less than 600 ps resolution.
The device operates over a temperature range of -20°C to +85°C and is packaged in a space-saving 40-lead LFCSP (6x6 mm) surface-mount package. It provides on-chip 3V horizontal and RG drivers, making it suitable for direct interface with CCD sensors. The AD9949AKCPZ is specified for pixel rates up to 36 MHz and is programmed via a 3-wire serial interface.
The AD9949AKCPZ is available in a 40-lead LFCSP (6x6 mm) surface mount package.
The operating temperature range is -20°C to +85°C.
The part is listed as RoHS3 Compliant, but this is unverified and should be confirmed with the manufacturer.
The ADC resolution is 12 bits.
The maximum sampling rate is 36 MSPS.
The CDS gain range is 0 dB to 18 dB, and the VGA gain range is 6 dB to 42 dB.
The precision timing core provides less than 600 ps resolution.
