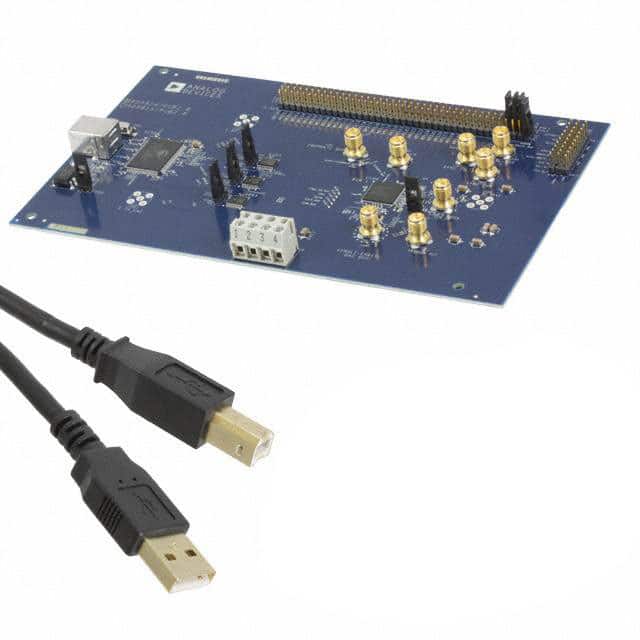

The AD9914/PCBZ is an evaluation board from Analog Devices designed to support the AD9914 direct digital synthesizer (DDS). The board provides a platform for evaluating the AD9914's key features, including a 3.5 GSPS internal clock speed, integrated 12-bit DAC, and frequency tuning resolution to 190 pHz.
The AD9914 supports 16-bit phase tuning, 12-bit amplitude scaling, programmable modulus, and automatic linear and nonlinear frequency sweeping. It offers a 32-bit parallel datapath interface, eight frequency/phase offset profiles, and serial or parallel input/output control. The device operates from 1.8 V and 3.3 V power supplies and is available in an 88-lead LFCSP package.
This evaluation board is intended for use in applications such as agile local oscillator frequency synthesis, programmable clock generation, FM chirp sources for radar and scanning systems, test and measurement equipment, acousto-optic device drivers, polar modulators, and fast frequency hopping. The board is supplied as a board only, with no additional accessories.
| Qty | Low | High |
|---|---|---|
| 1+ | $882.99 | $882.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD9914/PCBZ is an evaluation board for the AD9914 direct digital synthesizer (DDS).
The board evaluates the AD9914 DDS IC.
The AD9914 has a 3.5 GSPS internal clock speed.
Yes, the AD9914 includes an integrated 12-bit DAC.
The AD9914 provides frequency tuning resolution to 190 pHz.
The AD9914 operates with 1.8 V and 3.3 V power supplies.
The AD9914 is available in an 88-lead LFCSP package.
