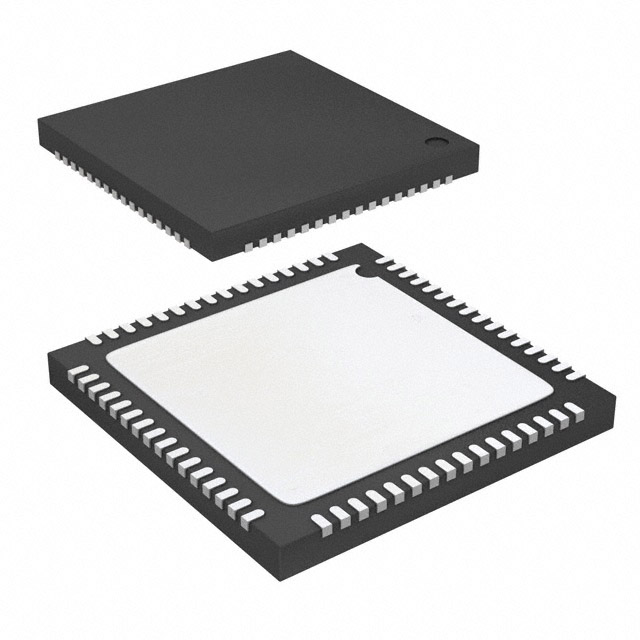

The AD9889BBCPZ-80 from Analog Devices is a high-performance HDMI v. 1.3 and DVI v. 1.0 compatible transmitter. It operates at a digital video clock frequency of 165 MHz, supporting resolutions up to 1080p and UXGA at 60 Hz. This device is designed for secure transmission of protected content with HDCP v. 1.2 compliance.
Key features include a single 1.8V power supply and video/audio inputs that accept logic levels from 1.8V to 3.3V. It supports various color spaces like RGB, YCbCr, and DDR, along with embedded syncs. Digital audio capabilities include S/PDIF for stereo LPCM or compressed audio up to 192 kHz, and 8-channel uncompressed LPCM I2S audio up to 192 kHz.
System design is simplified with an on-chip MPU for HDCP operations and EDID reading. The device features 5V tolerant I2C and HPD I/Os. It is available in a 64-lead LFCSP package, suitable for surface mounting.
Applications for the AD9889BBCPZ-80 include DVD players and recorders, digital set-top boxes, A/V receivers, and digital cameras. It is also suitable for HDMI repeater and splitter designs.
The supply voltage is 1.8V.
The digital video clock frequency is 165 MHz.
The control interface is I²C.
Audio sample rates up to 192 kHz are supported for both S/PDIF and I2S interfaces.
It complies with CEA-861B, DVI 1.0, HDCP 1.2, HDMI 1.3, and ITU656.
The package is a 64-lead LFCSP-VQ (9x9mm) with exposed pad.
RoHS3 compliance is indicated but unverified.
