The AD9889ABBCZ-80 from Analog Devices is a high-performance HDMI/DVI transmitter designed for consumer video applications. It operates at 80 MHz, supporting resolutions from 480i up to 720p/1080i and computer graphics resolutions up to XGA at 75 Hz.
This transmitter is compatible with HDMI v1.2a, DVI v1.0, and HDCP 1.1 standards, enabling secure transmission of protected content. It features a single 1.8V power supply and accepts video/audio logic levels from 1.8V to 3.3V. The device includes programmable two-way color space conversion and supports RGB, YCbCr, and DDR color formats.
For audio, the AD9889ABBCZ-80 supports standard S/PDIF for stereo LPCM or compressed audio up to 192 kHz, as well as 8-channel uncompressed LPCM I2S audio up to 192 kHz. Special features for system design include an on-chip MPU for HDCP operations and EDID reading, and 5V tolerant I2C and HPD I/Os.

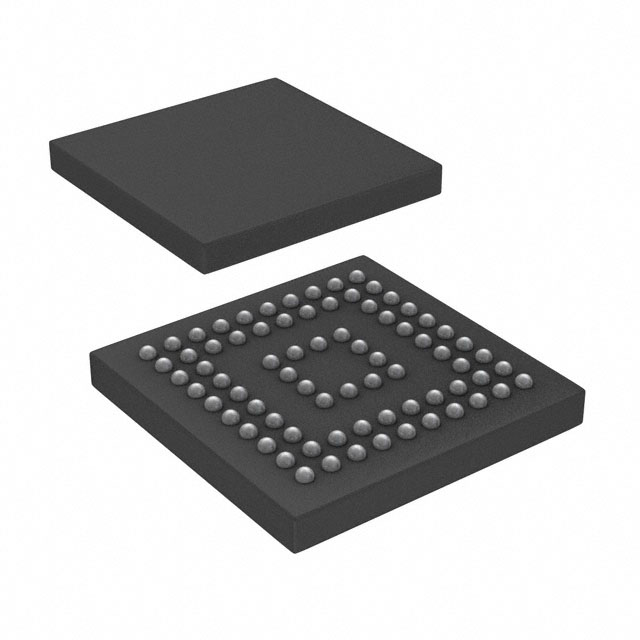

The AD9889ABBCZ-80 is supplied in a 76-ball CSP_BGA package and is designed for surface mounting. Its applications include DVD players and recorders, digital set-top boxes, A/V receivers, and digital cameras.
The nominal operating voltage is 1.8V, with a range of 1.71V to 1.89V.
It is available in a 76-CSPBGA (6x6 mm) or 76-LFBGA package for surface mount.
It is listed as RoHS3 Compliant, but this is unverified and should be confirmed with official documentation.
It supports HDMI v1.2a, DVI v1.0, HDCP 1.1, CEA-861B, and ITU656.
It supports resolutions from 480i to 720p/1080i and XGA-75 Hz.
S/PDIF for stereo LPCM or compressed audio, and I²S for up to 8-channel uncompressed LPCM audio up to 192 kHz.
The device is controlled via an I²C interface.
