Mfr Part #:

AD9862BSTZ

Mfr Name: Analog Devices / Maxim Integrated

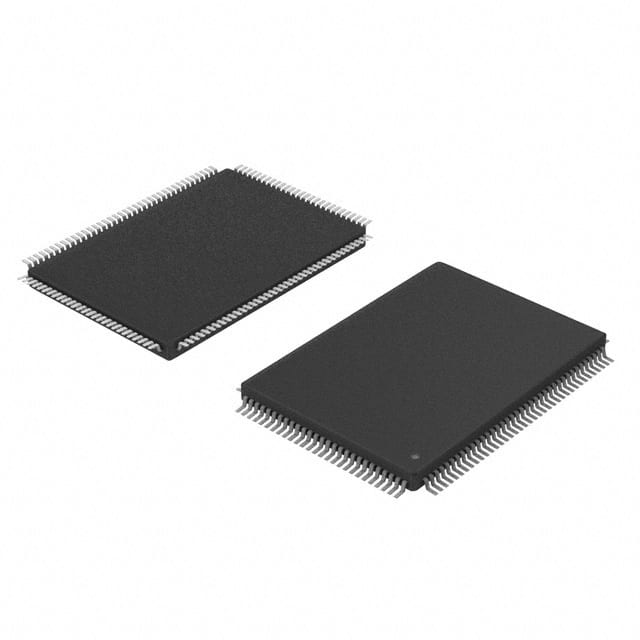

The Analog Devices AD9862BSTZ is a versatile mixed-signal front-end processor optimized for broadband communications. It features 12-bit ADCs and 14-bit DACs with high sample rates.

✓ Total Stock: 5,566 pcs

$ Price Range: $0.99

AD9862BSTZ Available from 4 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Components Technology Group, Inc. ✓ Non-Authorised Inventory information	3,500 pcs On Request	3500 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	2,002 pcs On Request	2002 pcs	On Request	1	On Request	On Request	24+	On Request	On Request
Rayichip ✓ Non-Authorised Inventory information	60 pcs On Request	60 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Speed Components Ltd ✓ Non-Authorised Inventory information	4 pcs On Request	4 pcs	On Request	1	On Request	On Request	1425	On Request	On Request

AD9862BSTZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	RF Front End (LNA + PA)
Manufacturer Name	Analog Devices / Maxim Integrated
Features	12-Bit ADC(s), 14-Bit DAC(s)
Lead Spacing	14 mm
RF Type	LMDS, MMDS
Supplier Device Package	128-LQFP (14x20)
Supplier Package	128-LQFP (14x20)

View Similar Products (0)

AD9862BSTZ Description

Short technical summary and product information.

The AD9862BSTZ from Analog Devices is an integrated mixed-signal front-end (MxFE) processor designed for broadband communication systems. It offers a cost-effective solution where dynamic performance, power dissipation, and size are critical.

The device includes a receive path with two channels, each featuring a 10-/12-bit, 64 MSPS analog-to-digital converter (ADC), input buffer, programmable gain amplifier (RxPGA), digital Hilbert filter, and decimation filter. The transmit path consists of two channels with high-performance, 12-/14-bit, 128 MSPS digital-to-analog converters (DACs), programmable gain amplifiers (TxPGAs), interpolation filters, and a Hilbert filter.

Key electrical specifications include 10-bit and 12-bit ADCs, and 12-bit and 14-bit DACs, with sample rates of 64 MSPS for ADCs and 128 MSPS for DACs. Both the receive and transmit paths offer a 20 dB gain range. The AD9862BSTZ supports LMDS and MMDS RF types.

Packaged in a 128-LQFP (14x20) format, this component is suitable for surface mounting. It is specified with a Moisture Sensitivity Level (MSL) of 1 Unlimited and is RoHS3 compliant.

AD9862BSTZ Quick Information

Product Type: Mixed-Signal Front-End (MxFE) Processor

Canonical Name: AD9862BSTZ Mixed-Signal Front-End (MxFE) Processor

Subcategory: RF Front End

AD9862BSTZ Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

AD9862BSTZ Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

AD9862BSTZ Features

10-bit and 12-bit ADCs
12-bit and 14-bit DACs
64 MSPS ADC and 128 MSPS DAC rates
20 dB programmable gain range
128-LQFP package for surface mounting

AD9862BSTZ Applications

Optimized for broadband communication systems
Suitable for wireless or wireline modems
Supports real, diversity, or I/Q data
Used in LMDS and MMDS applications
