| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,121 pcs
|
2121 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
380 pcs
|
380 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name |
The AD9835BRUZ by Analog Devices is a Direct Digital Synthesizer (DDS) and waveform generator capable of operating at speeds up to 50 MHz. This integrated circuit employs a phase accumulator, a COS lookup table, and a 10-bit digital-to-analog converter on a single CMOS chip.
Key electrical specifications include a 5V power supply requirement and a typical power consumption of 200 mW, which can be reduced to 1.75 mW in power-down mode. The device supports phase and frequency modulation capabilities. Its operating temperature range is from -40°C to +85°C.

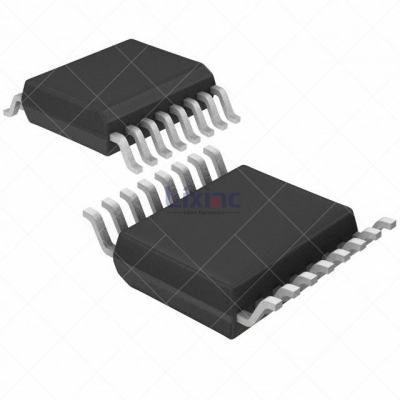

The AD9835BRUZ is housed in a 16-lead TSSOP package. Its applications include frequency stimulus/waveform generation, frequency phase tuning and modulation, low power RF/communications systems, and sensory applications.
This component is suitable for designs requiring precise frequency and phase control. The serial loading interface allows for easy register manipulation for modulation. The power-down feature is beneficial for power-sensitive applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum clock speed for the AD9835BRUZ is 50 MHz.
The AD9835BRUZ has a 10-bit DAC resolution.
The operating temperature range for the AD9835BRUZ is -40°C to +85°C.
The AD9835BRUZ is available in a 16-Lead TSSOP package.
The typical power consumption is 200 mW, reducing to 1.75 mW in power-down mode.
