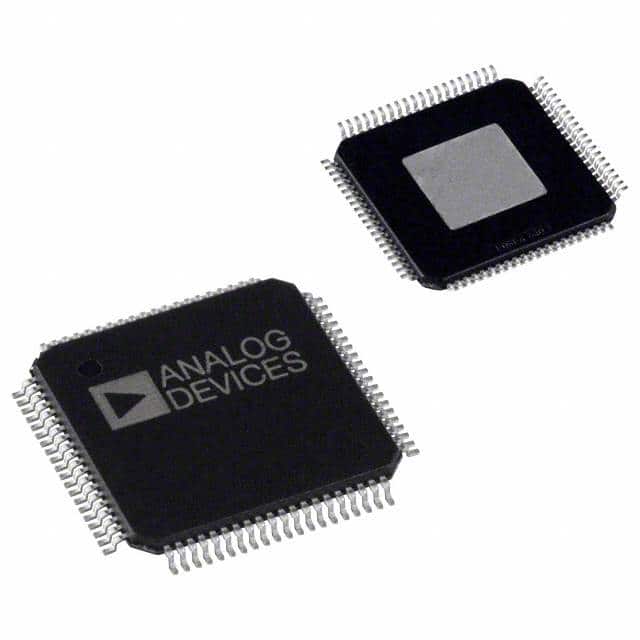

AD9773BSVZ The AD9773BSVZ is a 12-bit, 400 MSPS dual digital-to-analog converter from Analog Devices. It features two DAC channels, a parallel data interface, and is housed in an 80-TQFP exposed pad package.
Mfr Part #:

AD9773BSVZ

Available from 2 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The AD9773BSVZ is a 12-bit, 400 MSPS dual digital-to-analog converter from Analog Devices. It features two DAC channels, a parallel data interface, and is housed in an 80-TQFP exposed pad package.
✓ Total Stock: 6,100 pcs

AD9773BSVZ Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,100 pcs
On Request
2100 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AD9773BSVZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Data Interface
Differential Output
INL
Lead Style
Mounting Type
Number of Bits
Number of D
Operating Temperature
Output Type
Reference Type
SVHC Present
Settling Time
Supplier Device Package
Voltage
View Similar Products (0)

AD9773BSVZ Description

Short technical summary and product information.

The AD9773BSVZ is a 12-bit, dual-channel digital-to-analog converter (DAC) from the TxDAC+ family by Analog Devices. It supports a maximum sampling rate of 400 MSPS and features a parallel data interface. The device offers selectable 2x, 4x, or 8x interpolation filters to simplify reconstruction filter requirements and enhance pass-band noise performance.



Key electrical specifications include a typical settling time of 11 ns, typical INL of ±0.4 LSB, and typical DNL of ±0.2 LSB. The DAC provides differential current output and supports both external and internal voltage references. It operates from a single 3.3V supply with a typical power dissipation of 1.2 W.



The AD9773BSVZ is designed for surface mount assembly in an 80-lead TQFP package with an exposed pad (80-TQFP-EP, 12x12 mm). It is specified for operation over the industrial temperature range of -40°C to +85°C. Typical AC performance includes an SFDR of -69 dBc and a WCDMA ACPR of -69 dB.

AD9773BSVZ Quick Information

Product Type: Digital-to-Analog Converter (DAC)
Series: AD9773
Canonical Name: AD9773BSVZ 12-Bit 400 MSPS Dual Interpolating TxDAC+ Digital-to-Analog Converter
Subcategory: Interpolating DAC

AD9773BSVZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

AD9773BSVZ Features

  • 12-bit resolution with 400 MSPS update rate.
  • Dual DAC channels with parallel data interface.
  • Selectable 2x/4x/8x interpolation filters.
  • Differential current output architecture.
  • Surface mount 80-TQFP exposed pad package.

AD9773BSVZ Applications

  • Ideal for communications and wireless base stations.
  • Suitable for instrumentation and ATE systems.
  • Used in digital quadrature modulation circuits.
  • Applicable for direct IF transmission mode designs.

AD9773BSVZ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resolution of the AD9773BSVZ?

The AD9773BSVZ has a resolution of 12 bits.

What is the maximum sampling rate of the AD9773BSVZ?

The maximum sampling rate is 400 MSPS.

How many DAC channels does the AD9773BSVZ have?

The AD9773BSVZ has 2 DAC channels.

What is the operating temperature range of the AD9773BSVZ?

The operating temperature range is -40°C to +85°C.

What is the package type for the AD9773BSVZ?

The AD9773BSVZ is housed in an 80-TQFP Exposed Pad package (80-TQFP-EP, 12x12 mm).

Is the AD9773BSVZ RoHS compliant?

The AD9773BSVZ is listed as RoHS3 compliant, but this is unverified and should be confirmed.

What is the supply voltage range for the AD9773BSVZ?

The supply voltage range is 3.1V to 3.5V.
