| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,216 pcs
|
2216 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
205 pcs
|
205 pcs | On Request | 1 | On Request | On Request | 11+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Data Interface | |
| Differential Output | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Bits | |
| Operating Temperature | |
| Output Type | |
| Reference Type | |
| SVHC Present | |
| Settling Time | |
| Supplier Device Package |
The AD9772AASTZ is a 14-bit digital-to-analog converter (DAC) manufactured by Analog Devices Inc. This component is part of the TxDAC+ series and is designed for high-performance applications.
Key electrical specifications include a 14-bit resolution and a single DAC channel. It operates with analog and digital supply voltages ranging from 3.1V to 3.5V. The device offers a fast settling time of 11ns (typical) and utilizes a parallel data interface. The INL/DNL is specified at ±3.5 | ±2 LSB, and it features a current source architecture.

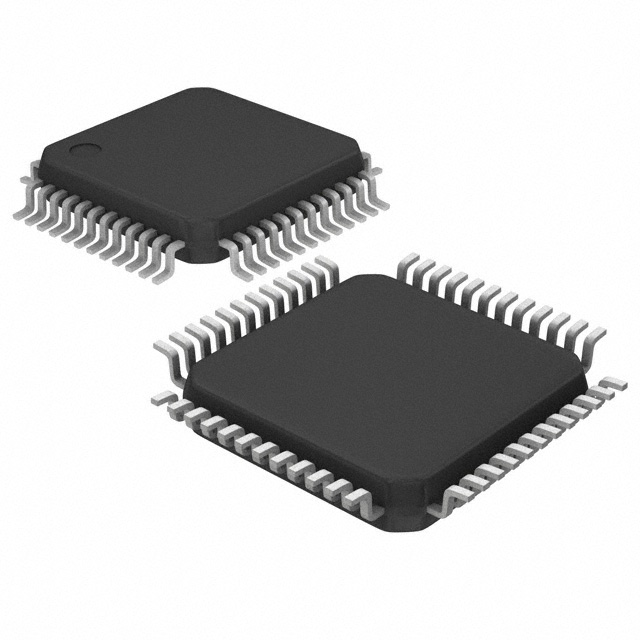

The AD9772AASTZ is housed in a 48-LQFP package and is designed for surface mounting. Its operating temperature range is -40°C to 85°C. The component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 3.
This DAC is suitable for various signal processing applications where precise digital-to-analog conversion is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.38 | $6.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Analog and digital supply voltage range is 3.1V to 3.5V.
It is available in a 48-LQFP (7x7mm) package with surface mount mounting.
It operates from -40°C to 85°C.
14 bits.
11 ns typical.
Parallel data interface.
Current-unbuffered differential output.
