Mfr Part #:

AD9754ARUZ

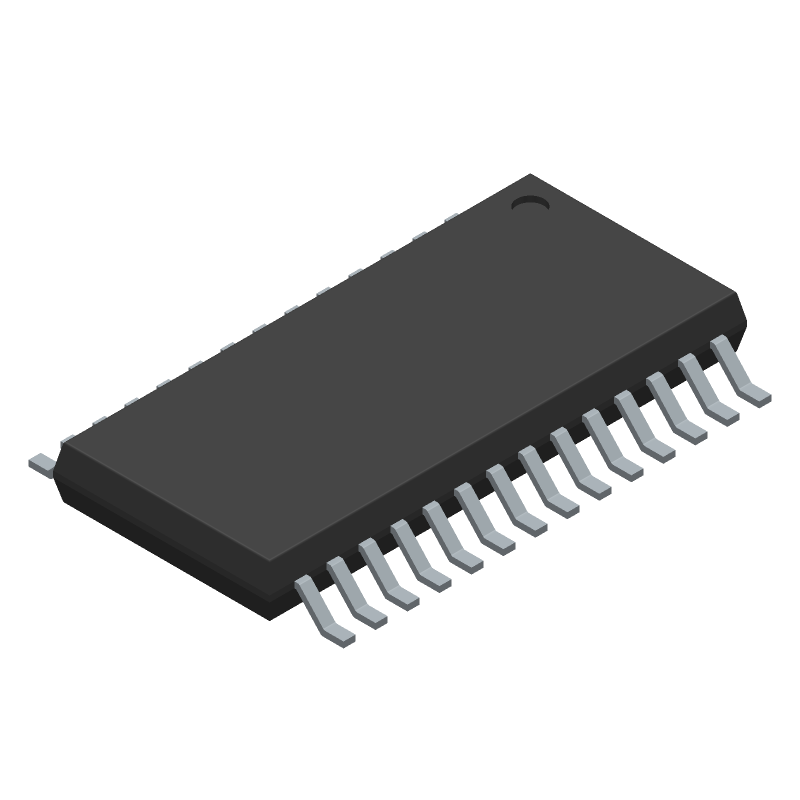

The AD9754ARUZ is a 14-bit, 125 MSPS Digital-to-Analog Converter from Analog Devices Inc. It offers high performance with a parallel interface.

✓ Total Stock: 2,317 pcs

$ Price Range: $0.30

AD9754ARUZ Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	2,002 pcs On Request	2002 pcs	On Request	1	On Request	On Request	24+	On Request	On Request
Fe Components ✓ Non-Authorised Inventory information	295 pcs On Request	295 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
NTD Electronics ✓ Non-Authorised Inventory information	20 pcs On Request	20 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

AD9754ARUZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	ADI Electronics
Contact Plating	Tin, Matte
Interface	Parallel
Resolution	14-Bit bits
Settling Time	35ns
Supply Current	34mA

View Similar Products (0)

AD9754ARUZ Description

Short technical summary and product information.

The Analog Devices AD9754ARUZ is a high-performance, 14-bit resolution, 125 MSPS Digital-to-Analog Converter (DAC) from the TxDAC product family. Optimized for communication systems, it features excellent spurious free dynamic range performance of 83 dBc at a 5 MHz output.

This DAC operates with a flexible supply voltage range of +4.5 V to +5.5 V and includes an on-chip 1.20 V reference. It provides differential current outputs ranging from 2 mA to 20 mA. The digital interface is CMOS-compatible, supporting +2.7 V to +5.5 V logic levels. The device is housed in a 28-lead TSSOP package.

Applications for the AD9754ARUZ include wideband communication transmit channels, direct IF, basestations, wireless local loop, digital radio links, direct digital synthesis (DDS), and instrumentation. Its low power dissipation and compact package make it suitable for various electronic designs.

AD9754ARUZ Quick Information

Product Type: Digital-to-Analog Converter (DAC)

Series: TxDAC

Canonical Name: AD9754ARUZ 14-Bit 125 MSPS Digital-to-Analog Converter

Subcategory: DAC

AD9754ARUZ Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

AD9754ARUZ Estimated Pricing

Qty	Low	High
1+	$0.30	$0.30

Estimated market price range - modelled values for guidance only, not live distributor offers.

AD9754ARUZ Features

14-bit resolution and 125 MSPS update rate.
Excellent SFDR performance of 83 dBc.
Differential current outputs from 2 mA to 20 mA.
On-chip 1.20 V reference included.
CMOS-compatible digital interface.

AD9754ARUZ Applications

Wideband communication transmit channels.
Direct digital synthesis (DDS) applications.
Basestation and wireless local loop systems.
Digital radio link implementations.
Instrumentation and test equipment.

AD9754ARUZ FAQs

7 frequently asked questions generated from this part’s specifications.

What is the resolution of the AD9754ARUZ?

The AD9754ARUZ has a resolution of 14 bits.

What is the maximum update rate for the AD9754ARUZ?

The AD9754ARUZ supports an update rate of 125 MSPS.

What is the typical SFDR performance of the AD9754ARUZ?

The typical Spurious Free Dynamic Range (SFDR) is 83 dBc to Nyquist at a 5 MHz output.

What is the operating voltage range for the AD9754ARUZ?

The AD9754ARUZ operates with a supply voltage between 4.5V and 5.5V.

What package type is the AD9754ARUZ supplied in?

The AD9754ARUZ is supplied in a TSSOP package.

What is the typical power dissipation of the AD9754ARUZ?

The typical power dissipation is 185 mW at 5 V, and it can be reduced to 20 mW in power-down mode.

What is the typical settling time for the AD9754ARUZ?

The typical settling time for the AD9754ARUZ is 35 ns.
