| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,002 pcs
|
2002 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
17 pcs
|
17 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Data Interface | |
| Differential Output | |
| INL | |
| Mounting Type | |
| Number of Bits | |
| Number of D | |
| Operating Temperature | |
| Output Type | |
| Power Dissipation | |
| Reference Type | |
| Settling Time | |
| Supplier Device Package | |
| Voltage |
The AD9739ABBCZ is a 14-bit, 2.5 GSPS RF digital-to-analog converter (DAC) from Analog Devices. It features a quad-switch architecture and supports direct RF synthesis from DC to 3 GHz. The device includes a dual-port LVDS data interface operating up to 1.25 GSPS with source synchronous DDR clocking.
Key electrical specifications include a typical settling time of 13 µs, programmable output current from 8.7 mA to 31.7 mA, and typical power dissipation of 1.1 W at 2.5 GSPS. The DAC offers both external and internal reference options, with integral nonlinearity (INL) of ±2.5 LSB and ±2 LSB typical.
The AD9739ABBCZ is designed for broadband communications, DOCSIS CMTS systems, military jammers, radar, and instrumentation. It operates over a temperature range of -40°C to 85°C and is supplied in a 160-CSPBGA (12x12 mm) surface-mount package.
The AD9739ABBCZ has a resolution of 14 bits.
The maximum update rate is 2.5 GSPS.

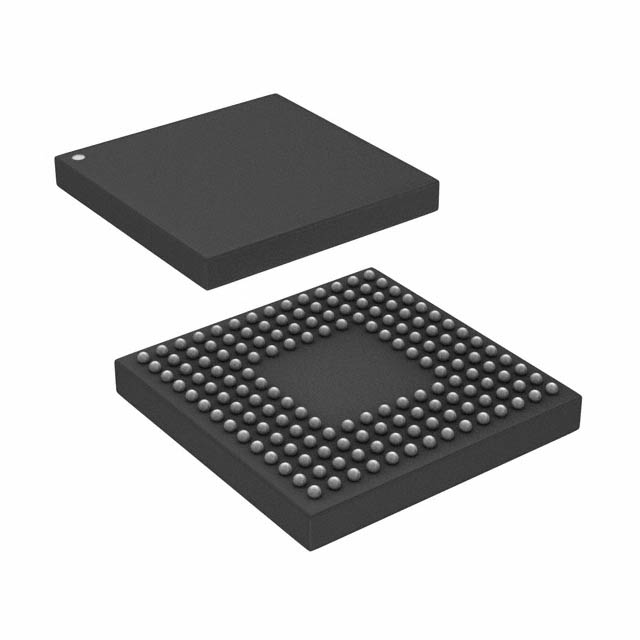

It is available in a 160-CSPBGA (12x12 mm) surface-mount package.
The operating temperature range is -40°C to 85°C.
RoHS compliance is marked as RoHS3 compliant but is unverified; treat as low confidence.
It uses an LVDS parallel data interface.
Typical power dissipation is 1.1 W at 2.5 GSPS.
