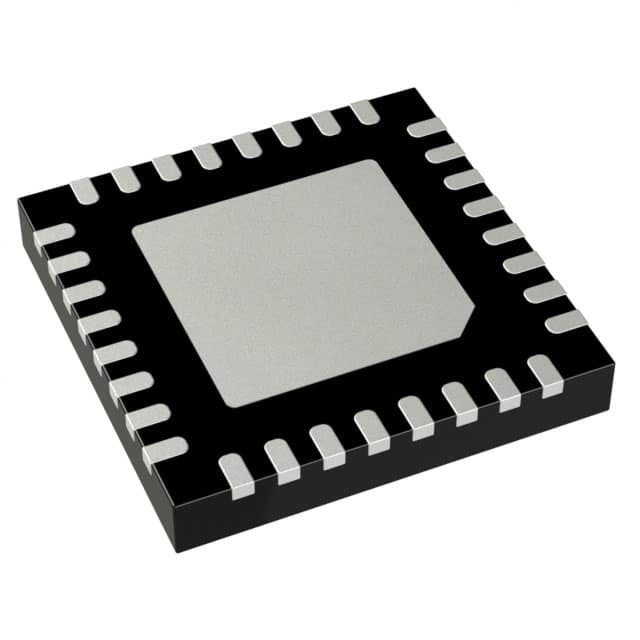

AD9706BCPZ The AD9706BCPZ is a 12-bit, 175 MSPS digital-to-analog converter from Analog Devices. It features a current unbuffered output, parallel data interface, and low power dissipation of 12 mW at 80 MSPS.
Mfr Part #:

AD9706BCPZ

Available from 3 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The AD9706BCPZ is a 12-bit, 175 MSPS digital-to-analog converter from Analog Devices. It features a current unbuffered output, parallel data interface, and low power dissipation of 12 mW at 80 MSPS.
✓ Total Stock: 94,286 pcs

AD9706BCPZ Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
84,555 pcs
On Request
84555 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
9,722 pcs
On Request
9722 pcs On Request 1 On Request On Request 21+ On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
9 pcs
On Request
9 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AD9706BCPZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Data Interface
Differential Output
INL
Mounting Type
Number of Bits
Number of D
Operating Temperature
Output Type
Reference Type
SVHC Present
Settling Time
Supplier Device Package
Voltage
View Similar Products (0)

AD9706BCPZ Description

Short technical summary and product information.

The AD9706BCPZ is a 12-bit digital-to-analog converter (DAC) from Analog Devices, part of the TxDAC family. It supports update rates up to 175 MSPS and is optimized for low power operation. The device has a single current-unbuffered output channel with differential output capability.



Electrically, it operates from a wide supply voltage range of 1.7V to 3.6V. Typical power dissipation is 12 mW at 80 MSPS (1.8V supply) and 50 mW at 175 MSPS (3.3V supply). It includes an on-chip 1.0V reference, adjustable full-scale output current from 1 mA to 5 mA, and self-calibration. The digital interface is parallel CMOS-compatible.



The AD9706BCPZ is housed in a compact 32-lead LFCSP package (5x5 mm) with an exposed pad for thermal management. It is RoHS3 compliant and rated for operation from -40°C to +85°C.



This DAC is suitable for communications transmit signal paths, arbitrary waveform generation, and other high-speed signal processing applications. Its low power and small package make it ideal for portable and power-sensitive designs.

AD9706BCPZ Quick Information

Product Type: Digital-to-Analog Converter
Series: AD9706
Canonical Name: AD9706BCPZ - 12-Bit, 175 MSPS Digital-to-Analog Converter
Subcategory: Current Output DAC

AD9706BCPZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AD9706BCPZ Features

  • 12-bit resolution with 175 MSPS update rate.
  • Low power dissipation: 12 mW at 80 MSPS.
  • Current-unbuffered output with differential capability.
  • Wide supply voltage range: 1.7V to 3.6V.
  • Compact 32-lead LFCSP package (5x5mm).

AD9706BCPZ Applications

  • Ideal for communications transmit signal paths.
  • Suitable for arbitrary waveform generation.
  • Used in base station and wireless infrastructure.
  • Applicable in portable and battery-powered systems.
  • Designed for high-speed digital-to-analog conversion.

AD9706BCPZ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range for the AD9706BCPZ?

The AD9706BCPZ operates from a supply voltage of 1.7 V to 3.6 V.

What package is the AD9706BCPZ available in?

The AD9706BCPZ is available in a 32-lead LFCSP package (5x5 mm) with exposed pad.

What is the operating temperature range of the AD9706BCPZ?

The operating temperature range is -40°C to +85°C.

Is the AD9706BCPZ RoHS compliant?

Yes, the AD9706BCPZ is RoHS3 compliant.

What is the resolution of the AD9706BCPZ?

The AD9706BCPZ has a resolution of 12 bits.

What is the maximum update rate of the AD9706BCPZ?

The maximum update rate is 175 MSPS.

What type of output does the AD9706BCPZ have?

The AD9706BCPZ features a current-unbuffered output.
