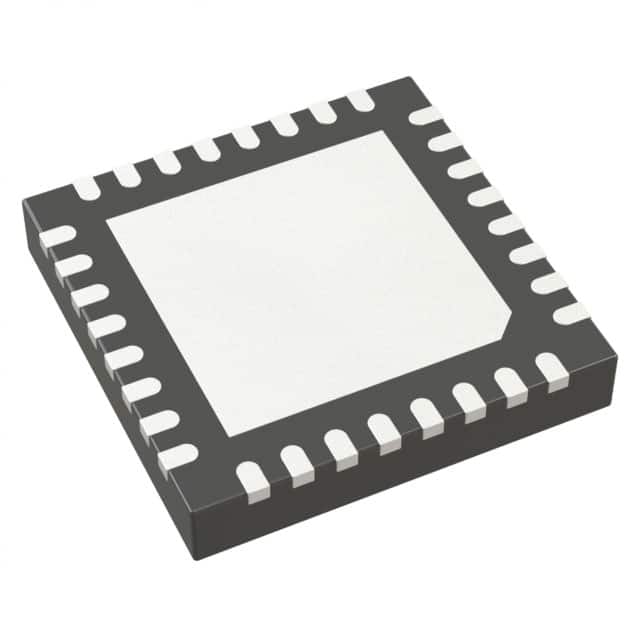

The AD9690BCPZ-500 is a high-performance 14-bit analog-to-digital converter (ADC) from Analog Devices, designed for demanding communications and instrumentation applications. It operates at a sampling rate of 500 MSPS and utilizes a pipelined architecture to achieve high dynamic performance. The device features a JESD204B serial data interface (Subclass 1) for efficient data transfer.
Key performance specifications include a spurious-free dynamic range (SFDR) of 85 dBFS at 340 MHz and 80 dBFS at 985 MHz, a signal-to-noise ratio (SNR) of 65.3 dBFS at 340 MHz, and an effective number of bits (ENOB) of 10.8 bits at 10 MHz. The ADC operates from 1.25V and 1.8V supplies and dissipates 1.5 W typical at 500 MSPS. It includes an internal voltage reference and supports a differential input with programmable termination impedance.
The device is housed in a 64-lead LFCSP (9x9 mm) package with an exposed pad for thermal management, and is rated for operation from -40°C to +85°C. Typical applications include multiband digital receivers, software-defined radios, radar systems, and instrumentation.
14 bits.
500 MSPS.
JESD204B (Subclass 1).
-40°C to +85°C.
1.25V and 1.8V.
64-lead LFCSP (9x9 mm) with exposed pad.
RoHS3 Compliant (unverified).
