AD9609BCPZ-80

The AD9609BCPZ-80 is a monolithic, single-channel, 10-bit Analog-to-Digital Converter (ADC) from Analog Devices Inc., capable of sampling at rates up to 80 MSPS. It features a multistage differential pipeline architecture with output error correction logic, ensuring 10-bit accuracy.

This ADC operates from a 1.8V analog supply and supports output supply voltages from 1.8V to 3.3V. Key electrical specifications include a signal-to-noise ratio (SNR) of 61.5 dBFS at 9.7 MHz input and a spurious-free dynamic range (SFDR) of 75 dBc at 9.7 MHz input. It boasts a low power consumption of 45 mW at 20 MSPS and 76 mW at 80 MSPS, with a differential input bandwidth of 700 MHz.

The device includes an on-chip voltage reference and a high-performance sample-and-hold circuit. It offers programmable features such as clock and data alignment, digital test pattern generation, and an optional duty cycle stabilizer. The digital output data can be formatted in offset binary, gray code, or twos complement.

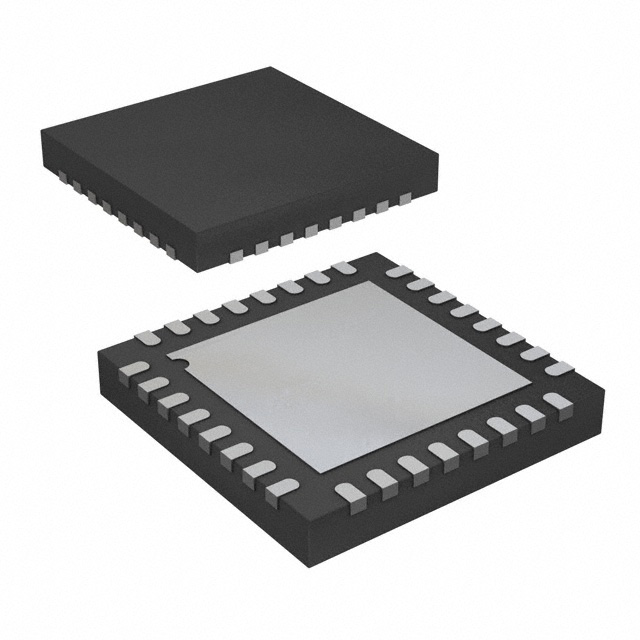

Packaged in a 32-lead LFCSP, the AD9609BCPZ-80 is specified for the industrial temperature range of -40°C to +85°C. Its features make it suitable for applications in communications, radar, LIDAR, and portable medical imaging.
