| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency | |
| Input Type | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output | |
| PLL | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage |

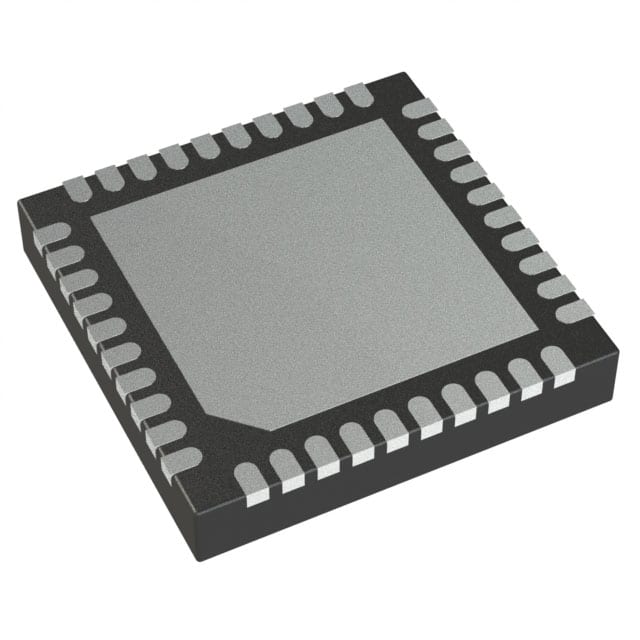

The AD9571ACPZLVD is an integrated circuit from Analog Devices Inc. designed for clock generation, fanout distribution, and multiplexing applications. It features a maximum operating frequency of 156.25MHz and supports crystal input with CMOS, LVDS, and LVPECL outputs.
This device operates within a supply voltage range of 2.97V to 3.63V and has an operating temperature range of -40°C to 85°C. The AD9571ACPZLVD is available in a 40-WFQFN Exposed Pad, CSP package, suitable for surface mount applications. It includes PLL functionality and a 1:10 input to output ratio.
Key specifications include a single circuit, differential input/output capability, and divider/multiplier functions. The component is packaged in tape and reel, with a supplier device package of 40-LFCSP-WQ (6x6).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.94 | $2.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum operating frequency is 156.25MHz.
The operating voltage range is 2.97V to 3.63V.
The operating temperature range is -40°C to 85°C.
It is a Clock Generator, Fanout Distribution, Multiplexer IC.
Yes, it features PLL functionality.
It supports CMOS, LVDS, and LVPECL output types.
The ratio is 1:10.
