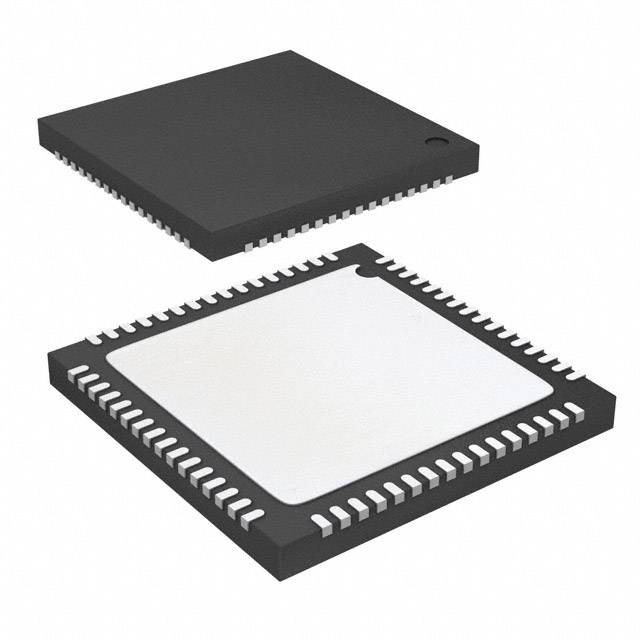

AD9549ABCPZ The AD9549ABCPZ is a dual input network clock generator/synchronizer from Analog Devices Inc. It features a maximum output frequency of 725 MHz, supports CMOS, LVDS, and LVPECL inputs, and is packaged in a 64-LFCSP.
Mfr Part #:

AD9549ABCPZ

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The AD9549ABCPZ is a dual input network clock generator/synchronizer from Analog Devices Inc. It features a maximum output frequency of 725 MHz, supports CMOS, LVDS, and LVPECL inputs, and is packaged in a 64-LFCSP.
✓ Total Stock: 8,777 pcs

AD9549ABCPZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
8,777 pcs
On Request
8777 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AD9549ABCPZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Differential
Frequency
Input
Main Purpose
Mounting Type
Number of Circuits
Operating Temperature
Output
PLL
Ratio
Supplier Device Package
Voltage
View Similar Products (0)

AD9549ABCPZ Description

Short technical summary and product information.

The AD9549ABCPZ is a dual input network clock generator/synchronizer from Analog Devices Inc., designed for synchronization in networking and telecommunications systems. It incorporates a PLL with a programmable digital loop filter offering bandwidth from <1 Hz to ~100 kHz. The device accepts two reference inputs with loss of reference indicators and supports automatic holdover and smooth phase transitions.



Key specifications include an input frequency range of 8 kHz to 750 MHz. Output options include differential HSTL clock up to 750 MHz and single-ended CMOS up to 150 MHz. The device operates from a 1.71V to 3.465V supply and is rated for an industrial temperature range of -40°C to 85°C.



The AD9549ABCPZ is housed in a surface-mount 64-VFQFN exposed pad package (64-LFCSP-VQ, 9x9 mm). It is suitable for network synchronization, SONET/SDH clock generation up to OC-192, Stratum 3/3E reference clocks, wireless base station controllers, and cable infrastructure applications.

AD9549ABCPZ Quick Information

Product Type: Clock Generator/Synchronizer
Canonical Name: AD9549ABCPZ
Subcategory: Application Specific Clock/Timing

AD9549ABCPZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AD9549ABCPZ Features

  • Dual input network clock generator/synchronizer.
  • PLL with programmable digital loop filter.
  • HSTL clock output up to 750 MHz.
  • CMOS output up to 150 MHz.
  • Operates from 1.71V to 3.465V supply.

AD9549ABCPZ Applications

  • Network synchronization and reference clock cleanup.
  • SONET/SDH clock generation up to OC-192.
  • Stratum 3/3E reference clock applications.
  • Wireless base station and cable infrastructure.

AD9549ABCPZ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range of the AD9549ABCPZ?

The supply voltage range is 1.71V to 3.465V.

What is the operating temperature range?

-40°C to 85°C.

What package does the AD9549ABCPZ come in?

64-VFQFN Exposed Pad, CSP (64-LFCSP-VQ 9x9).

Is the AD9549ABCPZ RoHS compliant?

Yes, it is listed as RoHS3 compliant.

What is the maximum output frequency of the AD9549ABCPZ?

750 MHz for HSTL output and 150 MHz for CMOS output.

What input logic levels does the AD9549ABCPZ support?

CMOS, LVDS, and LVPECL.

How many reference inputs does the AD9549ABCPZ have?
