| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
115 pcs
|
115 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Input | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Operating Voltage | |
| Output | |
| PLL | |
| SVHC Present | |
| Supplier Device Package | |
| Tape & Reel | |
| Type |
The AD9522-4BCPZ-REEL7 is a high-performance clock generator IC manufactured by Analog Devices Inc. This device is designed for clock generation and fanout distribution applications.
Key electrical specifications include a maximum frequency of 1.8GHz and an operating supply voltage range of 3.135V to 3.465V. It supports multiple input types, including CMOS, LVDS, and LVPECL, and offers CMOS and LVDS outputs. The device features a Phase-Locked Loop (PLL) and includes divider/multiplier functionality.

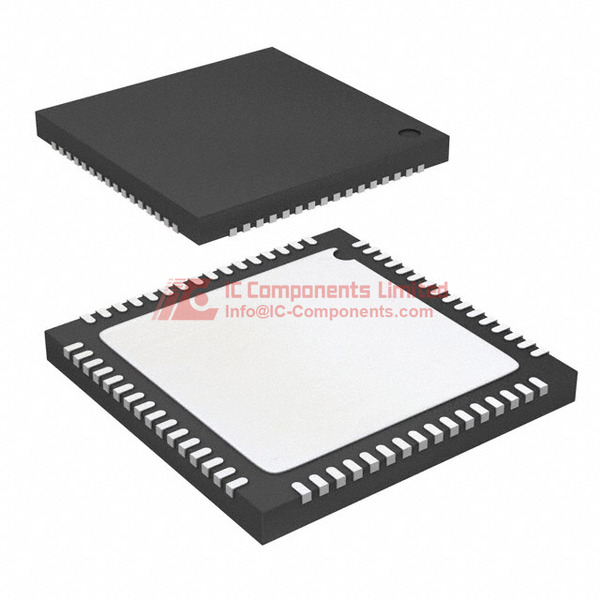

Packaged in a 64-VFQFN exposed pad, CSP, the AD9522-4BCPZ-REEL7 is designed for surface mount applications. It operates within a temperature range of -40°C to 85°C. The component is supplied in tape and reel packaging, suitable for automated assembly processes.
This clock generator is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.02 | $2.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 3.135V to 3.465V.
The maximum output frequency is 1.8GHz.
It is available in a 64-LFCSP-VQ (9x9mm) package with an exposed pad.
The operating temperature range is -40°C to +85°C.
Yes, it supports differential input and output signals.
