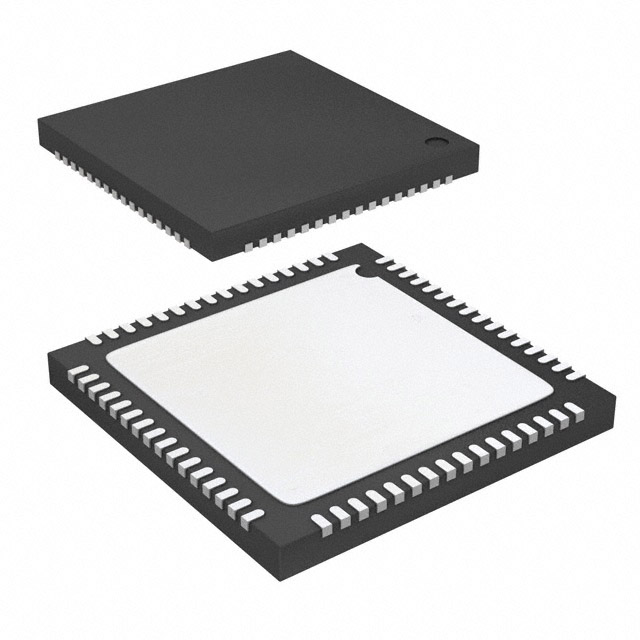

The AD9520-2BCPZ from Analog Devices is a multi-output clock distribution IC featuring a phase-locked loop (PLL) and an integrated voltage-controlled oscillator (VCO). The on-chip VCO tunes from 2.02 GHz to 2.335 GHz, with the device capable of generating frequencies up to 2.33 GHz.
This clock generator offers twelve 1.6 GHz LVPECL outputs, which can be configured as 2 CMOS outputs for frequencies up to 250 MHz. It supports various input types including CMOS, LVDS, and LVPECL, and features low additive output jitter as low as 225 fs rms and channel-to-channel skew under 16 ps. The device operates over a temperature range of -40°C to 85°C and is housed in a 64-lead LFCSP-VQ package.
Applications for the AD9520-2BCPZ include low jitter, low phase noise clock distribution for systems like SONET, 10Gb Ethernet, and high-performance wireless transceivers. It also supports clock generation and translation for various high-speed data converters and instrumentation.
The operating voltage range is 3.135 V to 3.465 V.
The package is 64-LFCSP-VQ (9x9 mm), surface mount.
The operating temperature range is -40°C to 85°C.
The part is listed as RoHS3 Compliant, but this status is unverified and low confidence.
The maximum frequency is 2.33 GHz.
Inputs: CMOS, LVDS, LVPECL. Outputs: CMOS, LVPECL.
Additive output jitter is as low as 225 fs rms.
