| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
66 pcs
|
66 pcs | On Request | 1 | On Request | On Request | 9920TP/ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Input Type | |
| Power Consumption | |
| Resolution | |
| SVHC Present |

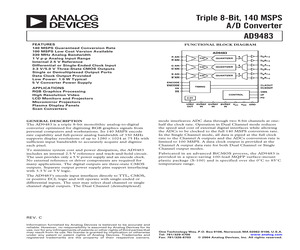

The AD9483KS-140 from Analog Devices is a triple 8-bit monolithic analog-to-digital converter designed for digitizing RGB graphics signals. It offers a guaranteed conversion rate of 140 MSPS and a full-power analog bandwidth of 330 MHz, supporting high-resolution displays.
Key features include an internal +2.5 V reference, a track-and-hold circuit, and 3.3 V/5.0 V three-state CMOS outputs for flexible interfacing. The device operates with a +5 V converter power supply and consumes a typical 1.0 W of power. It is suitable for applications such as RGB graphics processing, high-resolution video, and LCD monitors.
The AD9483KS-140 is available in a 100-lead MQFP package. Its design minimizes system cost and power dissipation by requiring only a +5 V power supply and an encode clock, with no external reference or driver components needed for many applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.31 | $7.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD9483KS-140 has a resolution of 8 bits.
The AD9483KS-140 has a guaranteed conversion rate of 140 MSPS.
The AD9483KS-140 features a 330 MHz analog bandwidth.
The analog input range for the AD9483KS-140 is 1 V p-p.
Yes, the AD9483KS-140 includes an internal +2.5 V reference.
The AD9483KS-140 has a typical power consumption of 1.0 W.
The AD9483KS-140 is supplied in a 100MQFP package.
