Mfr Part #:

AD9394BCBZ-R7

Mfr Name: Analog Devices / Maxim Integrated

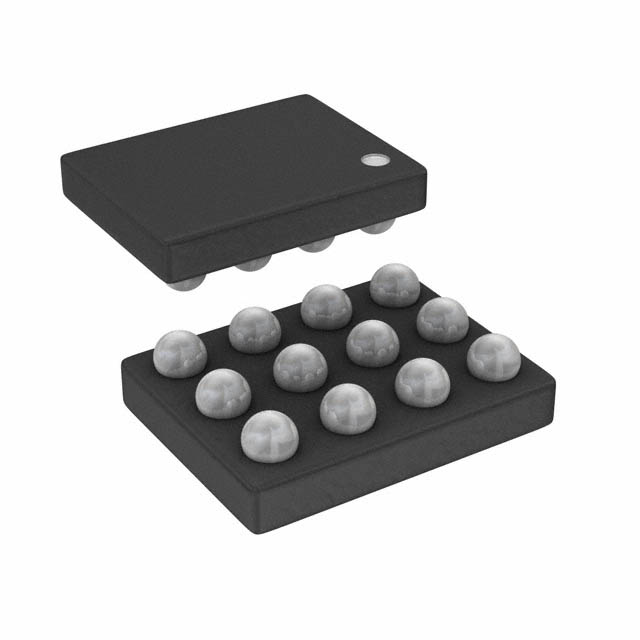

The Analog Devices AD9394BCBZ-R7 is an IC charge pump designed as an HDMI Tx companion chip. It provides 5V at 55mA and 3.3V at 60mA outputs, operating from a 2.5V to 4.5V input.

✓ Total Stock: 49 pcs

$ Price Range: $0.75

AD9394BCBZ-R7 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	49 pcs On Request	49 pcs	On Request	1	On Request	On Request	1037	On Request	On Request

AD9394BCBZ-R7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Power Management - Specialized
Manufacturer Name	Analog Devices / Maxim Integrated
Applications	General Purpose
Mounting Type	Surface Mount
Operating Temperature	-40°C to 85°C
Supplier Device Package	12-WLCSP (1.46x1.96)
Supplier Package	12-WLCSP (1.46x1.96)
Voltage	2.5 V to 4.5 V

View Similar Products (0)

AD9394BCBZ-R7 Description

Short technical summary and product information.

The AD9394BCBZ-R7 from Analog Devices is a specialized power management IC functioning as an HDMI Tx companion chip. It utilizes charge pump technology to deliver the necessary power for HDMI interface requirements, specifically providing a 5V output at 55mA and a 3.3V output at 60mA. This device is designed to operate with lithium battery inputs ranging from 2.5V to 4.5V and includes a short-circuit limitation of 100mA.

This component is suitable for applications such as cellular phones with HDMI/DVI output, portable media players, mobile internet devices, and digital still cameras. It is housed in a compact 12-WLCSP package with dimensions of 3 mm² (2 mm x 1.5 mm) and a height of 0.5 mm, making it ideal for space-constrained designs. The surface mountable package ensures ease of integration into various electronic assemblies.

Key electrical specifications include its input voltage range of 2.5V to 4.5V and its ability to provide regulated 5V and 3.3V outputs. The operating temperature range is from -40°C to 85°C, ensuring reliable performance in diverse environmental conditions. The AD9394BCBZ-R7 is designed for hot plug detect with HDMI Tx, further enhancing its utility in modern mobile and portable devices.

AD9394BCBZ-R7 Quick Information

Product Type: HDMI Tx Companion Chip

Canonical Name: AD9394BCBZ-R7 HDMI Tx Companion Chip

Subcategory: Specialized

AD9394BCBZ-R7 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

AD9394BCBZ-R7 Estimated Pricing

Qty	Low	High
1+	$0.75	$0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

AD9394BCBZ-R7 Features

Provides 5V at 55mA for HDMI.
Offers 3.3V at 60mA output.
Operates from 2.5V to 4.5V input.
Features 100mA short-circuit limitation.
Compact 12-WLCSP package.

AD9394BCBZ-R7 Applications

Cellular phones with HDMI/DVI.
Portable media players.
Mobile internet devices.
Digital still cameras.

AD9394BCBZ-R7 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the input voltage range for the AD9394BCBZ-R7?

The input voltage range is 2.5 V to 4.5 V.

What are the output voltages and currents provided by the AD9394BCBZ-R7?

It provides 5 V at 55 mA and 3.3 V at 60 mA.

What is the operating temperature range for this HDMI Tx companion chip?

The operating temperature range is -40°C to 85°C.

What package type is the AD9394BCBZ-R7 supplied in?

It is supplied in a 12-WLCSP package.

Is the AD9394BCBZ-R7 RoHS compliant?

Yes, it is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the AD9394BCBZ-R7?

The Moisture Sensitivity Level is 1 Unlimited.
