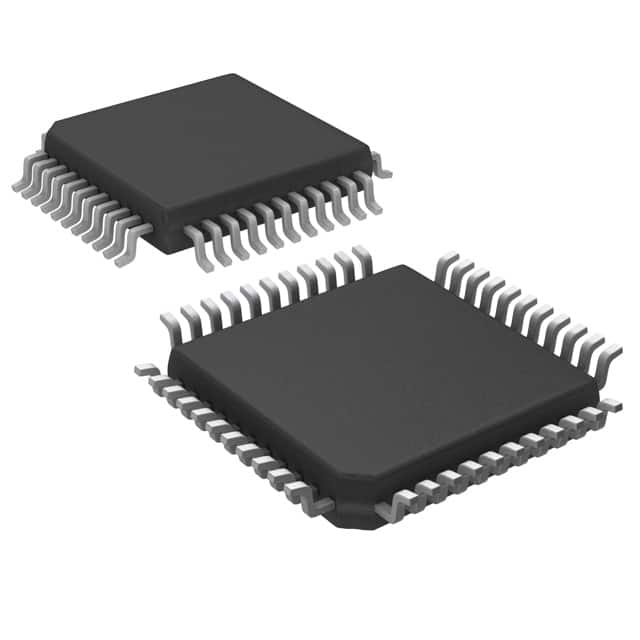

AD9260AS

The AD9260AS from Analog Devices is a monolithic 16-bit, oversampled analog-to-digital converter (ADC) manufactured on an advanced CMOS process. It provides exceptional dynamic range over a wide bandwidth, achieving high dynamic range through an 8x oversampling ratio using a proprietary technique combining sigma-delta and pipeline converter technologies.

Key electrical specifications include a 2.5 MHz output word rate, a 1.01 MHz signal passband with 0.004 dB ripple, a signal-to-noise ratio of 88.5 dB, total harmonic distortion of -96 dB, and a spurious-free dynamic range of 100 dB. It supports selectable oversampling ratios from 1x to 8x and operates with a single 5V analog supply and a 5V/3V digital supply.

The device features a switched-capacitor architecture with a nominal full-scale input range of 4V and differential inputs with 60 dB common-mode rejection. The on-chip decimation filter provides 8x decimation with 85 dB stop-band attenuation. The AD9260AS is available in a 44-lead MQFP package and supports parallel data interface.

With selectable power dissipation ranging from 150 mW to 585 mW, this ADC is suitable for applications requiring high precision and wide bandwidth. It operates within a temperature range of -40°C to 85°C.
