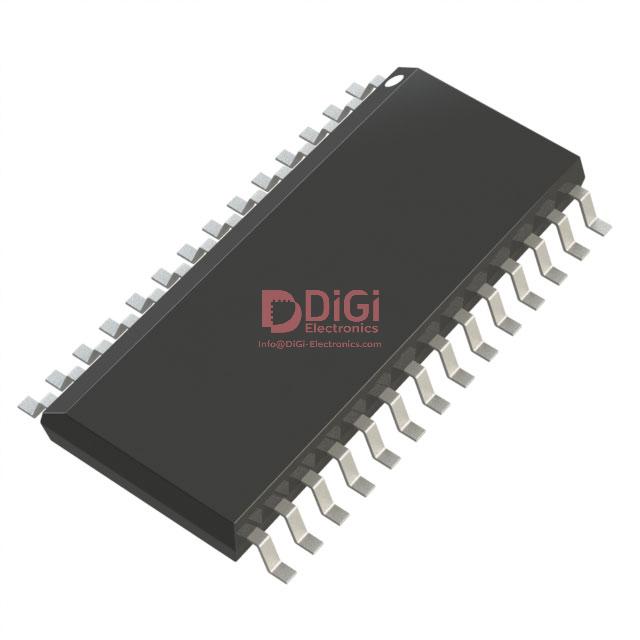

AD9225ARZ The Analog Devices AD9225ARZ is a 12-bit pipelined Analog to Digital Converter (ADC). It features a 25M sampling rate and operates within a temperature range of -40°C to 85°C.
Mfr Part #:

AD9225ARZ

Available from 2 distributors
Mfr Name: AD
AD
The Analog Devices AD9225ARZ is a 12-bit pipelined Analog to Digital Converter (ADC). It features a 25M sampling rate and operates within a temperature range of -40°C to 85°C.
✓ Total Stock: 1,256 pcs
$ Price Range: $7.31

AD9225ARZ Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
1,006 pcs
On Request
1006 pcs On Request 1 On Request On Request 19+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
250 pcs
On Request
250 pcs On Request 1 On Request On Request 14+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AD9225ARZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Data Interface
Input Type
Lead Spacing
Lead Style
Number of Bits
Number of Inputs
Operating Temperature
Reference Type
SVHC Present
Tape & Reel
Voltage
View Similar Products (0)

AD9225ARZ Description

Short technical summary and product information.

The AD9225ARZ from Analog Devices is a 12-bit pipelined Analog to Digital Converter (ADC). It is designed for data acquisition applications, offering a sampling rate of up to 25M samples per second. This ADC supports both differential and single-ended input types and utilizes a parallel data interface.



The device operates with an analog supply voltage of 5V and a digital supply voltage ranging from 2.85V to 5.25V. The operating temperature range for the AD9225ARZ is -40°C to 85°C, making it suitable for various environmental conditions. It is housed in a 28-SOIC package, measuring 0.295 inches with 7.5mm lead spacing.



Key electrical specifications include a 12-bit resolution and a pipelined architecture. The reference type can be either external or internal. The AD9225ARZ is a single A/D converter designed for robust performance in demanding applications.

AD9225ARZ Quick Information

Product Type: Analog to Digital Converter
Canonical Name: AD9225ARZ Analog to Digital Converter
Subcategory: ADC

AD9225ARZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

AD9225ARZ Estimated Pricing

Qty Low High
1+ $7.31 $7.31

Estimated market price range - modelled values for guidance only, not live distributor offers.

AD9225ARZ Features

  • 12-bit resolution for precise conversion.
  • 25M sampling rate for high-speed data.
  • Pipelined architecture for efficient processing.
  • Operates from -40°C to 85°C.
  • 28-SOIC package for standard integration.

AD9225ARZ Applications

  • Suitable for data acquisition systems.
  • Ideal for signal processing applications.
  • Used in embedded system designs.
  • Applicable in industrial controls.

AD9225ARZ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resolution of the AD9225ARZ?

The AD9225ARZ has a 12-bit resolution.

What is the sampling rate of the AD9225ARZ?

The sampling rate is 25 MSPS (25 million samples per second).

What are the supply voltage requirements for the AD9225ARZ?

Analog supply is 5V; digital supply range is 2.85V to 5.25V.

What is the operating temperature range of the AD9225ARZ?

The operating temperature range is -40°C to 85°C.

What package type is the AD9225ARZ available in?

The AD9225ARZ is available in a 28-SOIC package (0.295" body width, 7.5 mm pitch).

What input types does the AD9225ARZ support?

The AD9225ARZ supports both differential and single-ended inputs.

What is the architecture of the AD9225ARZ?

The AD9225ARZ uses a pipelined architecture.
