| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
36 pcs
|
36 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Data Interface | |
| Input Type | |
| Lead Style | |
| Number of Bits | |
| Number of Inputs | |
| Operating Temperature | |
| Reference Type |
The AD9224ARSZ is a 12-bit pipelined Analog to Digital Converter (ADC) manufactured by Analog Devices Inc. This component is designed for data acquisition applications, offering a sampling rate of up to 40M samples per second.
It features a single input and supports both differential and single-ended input types. The device operates with an analog supply voltage of 5V and a digital supply voltage ranging from 2.85V to 5.25V. The architecture is pipelined, with a S/H-ADC ratio of 1:1, and it utilizes external or internal reference types.

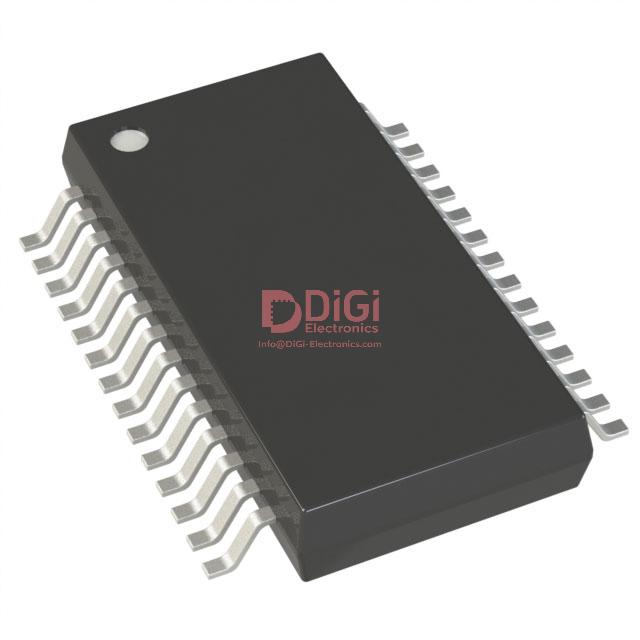

The AD9224ARSZ comes in a 28-SSOP package, measuring 5.30mm in width. It is specified for operation within an ambient temperature range of -40°C to 85°C. The device is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
This ADC is suitable for various applications requiring high-speed data conversion. Its specifications make it a versatile component for embedded systems and signal processing tasks.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.95 | $5.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD9224ARSZ has 12-bit resolution.
The maximum sampling rate is 40 MSPS.
It supports both differential and single-ended inputs.
It uses a pipelined architecture.
The operating temperature range is -40°C to 85°C.
It is available in a 28-SSOP package (5.30mm body width).
The analog supply is 5V and the digital supply ranges from 2.85V to 5.25V.
