| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,058 pcs
|
2058 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Data Interface | |
| Differential Output | |
| INL | |
| Mounting Type | |
| Number of Bits | |
| Number of D | |
| Operating Temperature | |
| Output Type | |
| Reference Type | |
| Supplier Device Package | |
| Voltage |

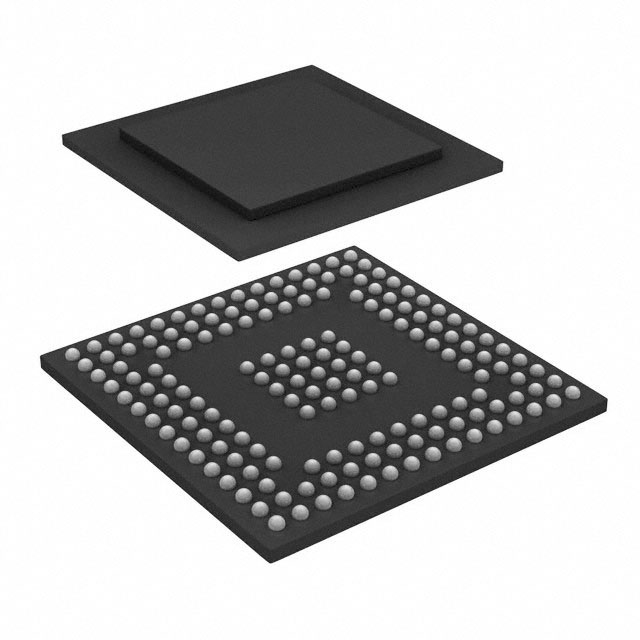

The AD9162BBCZ is a high-performance 16-bit digital-to-analog converter (DAC) from Analog Devices, supporting update rates up to 12 GSPS. It is based on a quad-switch architecture and includes a 2× interpolator filter for direct RF synthesis up to 6 GSPS. The device features a JESD204B serial data interface and supports external or internal reference. It provides excellent dynamic performance for broadband communications and wireless infrastructure applications. The DAC is available in a 165-ball CSPBGA package (8x8 mm) for surface mount assembly. It operates over a temperature range of -40°C to +85°C and requires analog supplies of 1.14V to 1.326V. The AD9162BBCZ is suitable for DOCSIS 3.1 CMTS, wireless base stations, and instrumentation.
The analog supply voltage range is 1.14V to 1.326V.
It is available in a 165-ball CSPBGA (8x8 mm) package.
The operating temperature range is -40°C to +85°C.
Yes, it is listed as RoHS3 compliant, but this is unverified.
It is a 16-bit digital-to-analog converter.
It uses a JESD204B serial data interface.
The maximum DAC update rate is 12 GSPS.
