| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,668 pcs
|
7668 pcs | On Request | 1 | On Request | On Request | 1609+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Interface | |
| Mounting Type | |
| Number of Bits | |
| Operating Temperature | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel |
The AD9154XCPZ is a 16-Bit Voltage Regulator Controller manufactured by Analog Devices Inc. This component is designed for applications requiring precise voltage regulation. It features a digital supply voltage range of 1.14V to 1.326V and an analog supply voltage range that spans from 1.14V to 1.326V, as well as 2.375V to 2.625V.
The device offers a resolution of 16 bits and a single Digital-to-Analog converter channel. It operates within an ambient temperature range of -40°C to 85°C. The integral non-linearity is specified at ±2.7 LSB and ±1.7 LSB. The data interface utilizes the JESD204B standard.

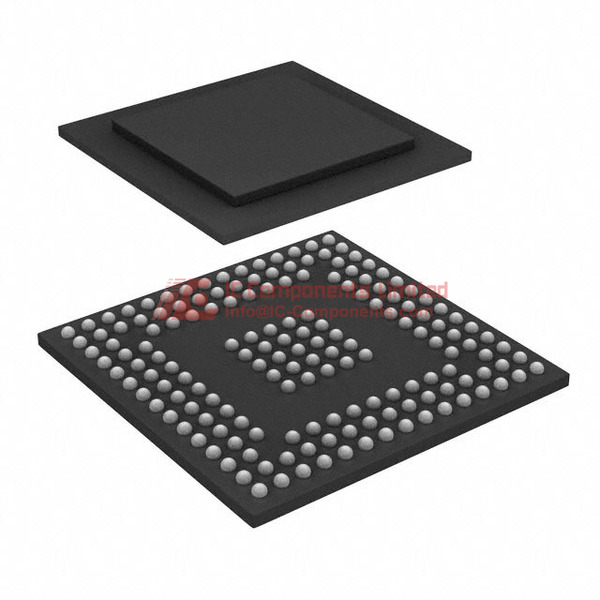

Packaged in a 165-CSPBGA (8x8) or 165-VFBGA, CSPBGA format, the AD9154XCPZ is designed for surface mount applications. It is supplied in tray packaging. The RoHS status is compliant with ROHS3 standards, and it has a Moisture Sensitivity Level (MSL) of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The digital supply voltage is 1.14V to 1.326V, and the analog supply voltage is 1.14V to 1.326V, and 2.375V to 2.625V.
The operating temperature range is -40°C to 85°C.
The AD9154XCPZ has a resolution of 16 bits.
The AD9154XCPZ is available in a 165-CSPBGA (8x8) or 165-VFBGA, CSPBGA package.
Yes, the AD9154XCPZ is ROHS3 Compliant.
