| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50,000 pcs
|
50000 pcs | On Request | 1 | On Request | On Request | 1418/ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Failure Rate | |
| Lead Style | |
| Mounting Type | |
| Number of Bits | |
| Operating Temperature | |
| Output Type | |
| Reference Type | |
| Settling Time | |
| Supplier Device Package |
The AD9142BCPZ is a 16-bit, 4-channel digital-to-analog converter (DAC) manufactured by Analog Devices Inc. This component is part of the TxDAC+ series and features an internal reference type. It supports a wide operating temperature range from -40°C to 85°C.
Electrical specifications include digital supply voltages ranging from 1.14V to 1.26V and analog supply voltages from 3.13V to 3.47V. The DAC offers a typical settling time of 20ns and an unbuffered current output.

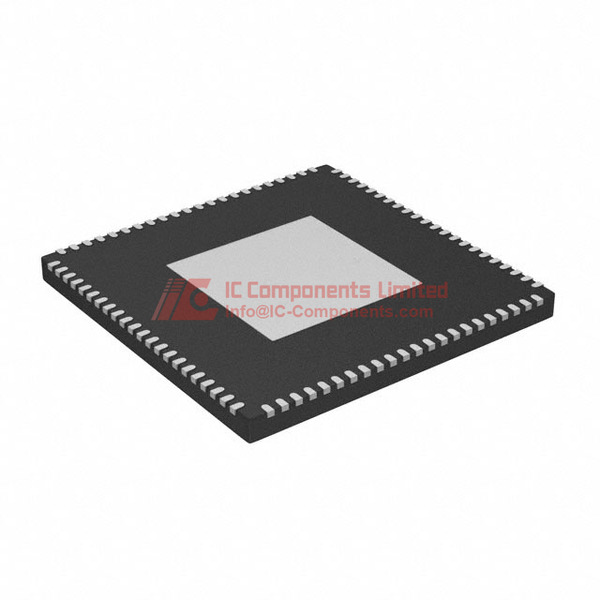

The device is supplied in an 88-LFCSP-VQ package, designed for surface mount installation. The package case is an 88-VFQFN Exposed Pad, CSP, typically supplied in trays. The RoHS status is reported as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.38 | $6.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD9142BCPZ has a resolution of 16 bits.
The AD9142BCPZ features 4 DAC channels.
The digital supply voltage ranges from 1.14V to 1.26V, and the analog supply voltage ranges from 3.13V to 3.47V.
The typical settling time for the AD9142BCPZ is 20ns.
The AD9142BCPZ operates in a temperature range of -40°C to 85°C.
The AD9142BCPZ is supplied in an 88-LFCSP-VQ package designed for surface mounting.
The RoHS status for the AD9142BCPZ is RoHS3 Compliant.
