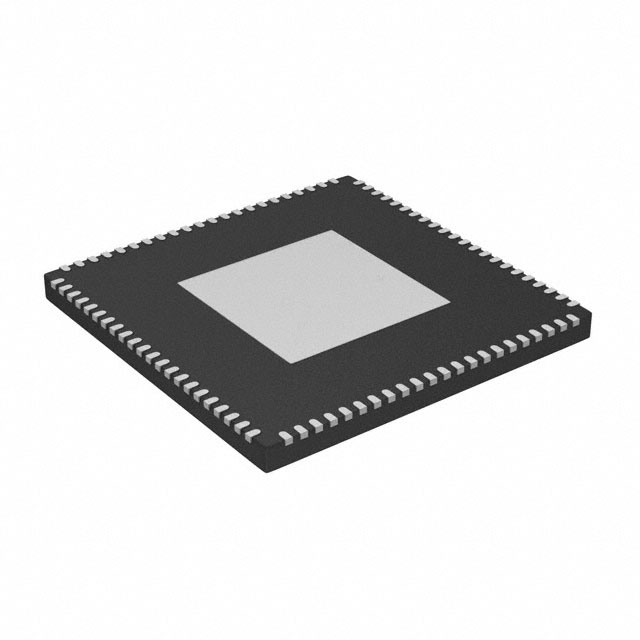

AD9136BCPZ The AD9136BCPZ is a dual 16-bit, 2.8 GSPS high dynamic range digital-to-analog converter with JESD204B interface, ideal for wideband communications and instrumentation.
Mfr Part #:

AD9136BCPZ

Available from 2 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The AD9136BCPZ is a dual 16-bit, 2.8 GSPS high dynamic range digital-to-analog converter with JESD204B interface, ideal for wideband communications and instrumentation.
✓ Total Stock: 2,642 pcs

AD9136BCPZ Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,542 pcs
On Request
2542 pcs On Request 1 On Request On Request 24+ On Request On Request
Risen Electronics ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request 2026-06-29 21:33:16
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AD9136BCPZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Data Interface
Differential Output
INL
Mounting Type
Number of Bits
Number of D
Number of Pins
Operating Temperature
Output Type
Reference Type
Settling Time
Supplier Device Package
Voltage
View Similar Products (0)

AD9136BCPZ Description

Short technical summary and product information.

The AD9136BCPZ from Analog Devices is a dual, 16-bit, high dynamic range digital-to-analog converter (DAC) featuring a maximum sample rate of 2.8 GSPS (2800 MSPS). It supports flexible 8-lane JESD204B serial interface and provides selectable 1x, 2x, 4x, or 8x interpolation filters for wideband signal generation.



The device offers high linearity and low spurious performance with typical SFDR of 82 dBc at dc IF, -9 dBFS. The DAC is designed for low power operation, consuming only 1.42 W typical at 1.6 GSPS under full operating conditions.



The AD9136BCPZ is housed in an 88-lead LFCSP package (12x12 mm with 7.4 mm exposed pad) for surface mount assembly. It operates over the industrial temperature range of -40°C to +85°C. This product is suitable for wireless communication base stations, software defined radios, wideband repeaters, and automated test equipment.

AD9136BCPZ Quick Information

Product Type: Digital to Analog Converter
Series: TxDAC+
Canonical Name: AD9136BCPZ Dual 16-Bit 2.8 GSPS TxDAC+ D/A Converter
Subcategory: High Speed DAC

AD9136BCPZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AD9136BCPZ Features

  • Dual 16-bit high-speed DAC core.
  • Maximum sample rate of 2.8 GSPS.
  • Flexible 8-lane JESD204B serial interface.
  • Low power dissipation of 1.42 W typical.
  • Surface mount 88-lead LFCSP package.

AD9136BCPZ Applications

  • Ideal for wireless base station transmitters.
  • Used in software defined radio platforms.
  • Suitable for automated test equipment.
  • Designed for wideband communications systems.

AD9136BCPZ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resolution of the AD9136BCPZ?

The AD9136BCPZ has a resolution of 16 bits.

What is the maximum sampling rate?

The maximum sampling rate is 2.8 GSPS.

How many DAC channels does it have?

The AD9136BCPZ has 2 DAC channels.

What is the operating temperature range?

The operating temperature range is -40°C to +85°C.

What interface does the AD9136BCPZ use?

It uses a JESD204B serial interface.

What is the package type?

It is an 88-lead LFCSP package with exposed pad, 12x12 mm.

Is the AD9136BCPZ RoHS compliant?

The product is listed as RoHS3 compliant (unverified).
