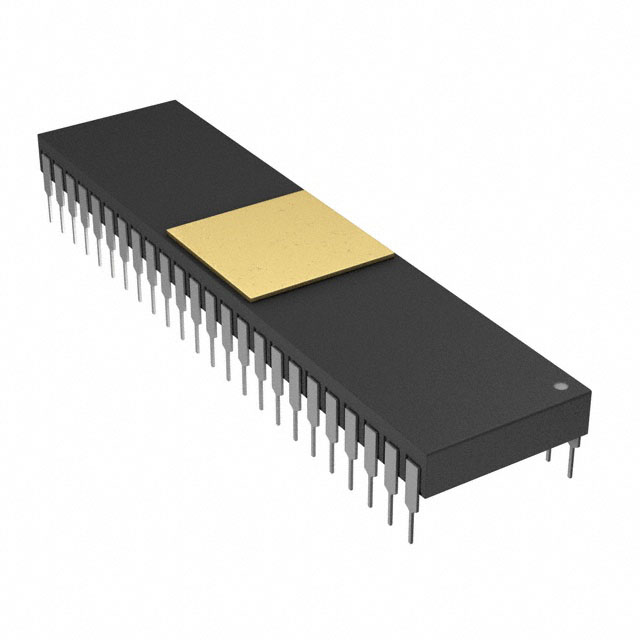

AD9058AKD is a dual 8-bit flash analog-to-digital converter (ADC) from Analog Devices. It contains two matched ADC channels on a single chip, each with single-ended input and a shared internal voltage reference. The device operates with a typical sampling rate of 50 MSPS and provides a parallel digital output. Its flash architecture gives low conversion latency, making it suitable for real-time data acquisition.
Electrical specifications include a typical differential nonlinearity of 0.25 LSB and integral nonlinearity of 0.5 LSB. Analog bandwidth is 175 MHz, and input capacitance is only 10 pF. Power dissipation is less than 1 W. Simultaneous sampling of both channels is supported. Supply voltage is ±5 V, and the device is specified over the commercial temperature range of 0°C to 70°C.
The component is packaged in a hermetic 48-lead ceramic dual-in-line package (48-CDIP) with through-hole mounting. The package footprint is 0.600-inch width with 15.24 mm lead spacing. It is intended for PCB assembly and is suitable for dual-channel data acquisition, quadrature receiver I/Q digitization, and high-speed instrumentation.
The AD9058AKD operates from ±5 V supplies.
The AD9058AKD is offered in a 48-CDIP (0.600", 15.24mm) ceramic dual-in-line package with through-hole mounting.
The operating temperature range is 0°C to 70°C.
The part is listed as RoHS3 Compliant, but this status is unverified.
The resolution is 8 bits.
The sampling rate is 50 MSPS.
Yes, the feature set includes simultaneous sampling of both ADC channels.
