| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Input Type | |
| Mounting Type | |
| Number of Bits | |
| Number of Inputs | |
| Reference Type |

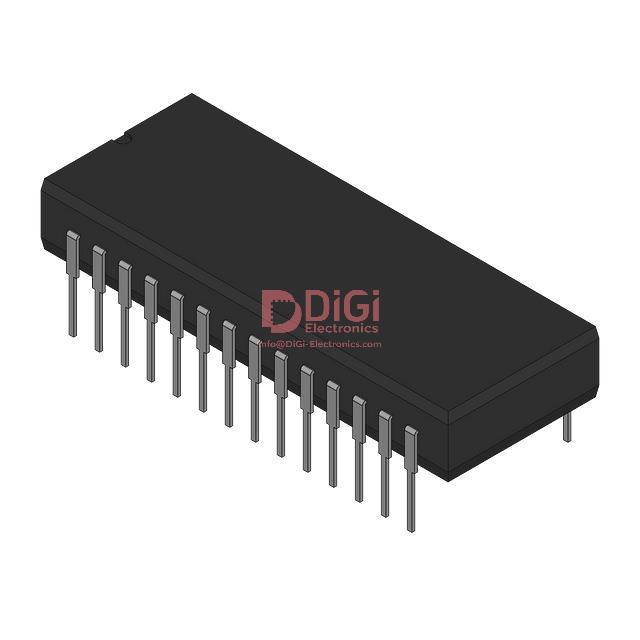

The AD9026AD from Analog Devices Inc. is a 12-bit flash analog-to-digital converter (ADC) belonging to the Data Acquisition product category. It features a high sampling rate of 25.6 MSPS, making it suitable for applications requiring rapid conversion of analog signals to digital data.
This ADC has a single-ended input and utilizes a flash architecture for fast conversion speeds. It operates with both analog and digital supply voltages ranging from -4.95V to -5.45V and 4.75V to 5.25V. The device is housed in a 28-CDIP package and is designed for through-hole mounting.
Key specifications include its 12-bit resolution, 25.6 MSPS sampling rate, single-ended input type, and internal reference. The AD9026AD is part of the AD9026 series and is classified as a Flash ADC within the broader category of Analog to Digital Converters.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.93 | $1.93 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD9026AD has a resolution of 12 bits.
The sampling rate of the AD9026AD is 25.6 MSPS.
The AD9026AD is packaged in a 28-CDIP package.
The input type of the AD9026AD is Single Ended.
The device operates within an analog and digital supply voltage range of -5.45V to 5.25V.
Yes, the AD9026AD is RoHS3 compliant.
