| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Noise | |
| Operating Temperature | |
| Tape & Reel | |
| Voltage |

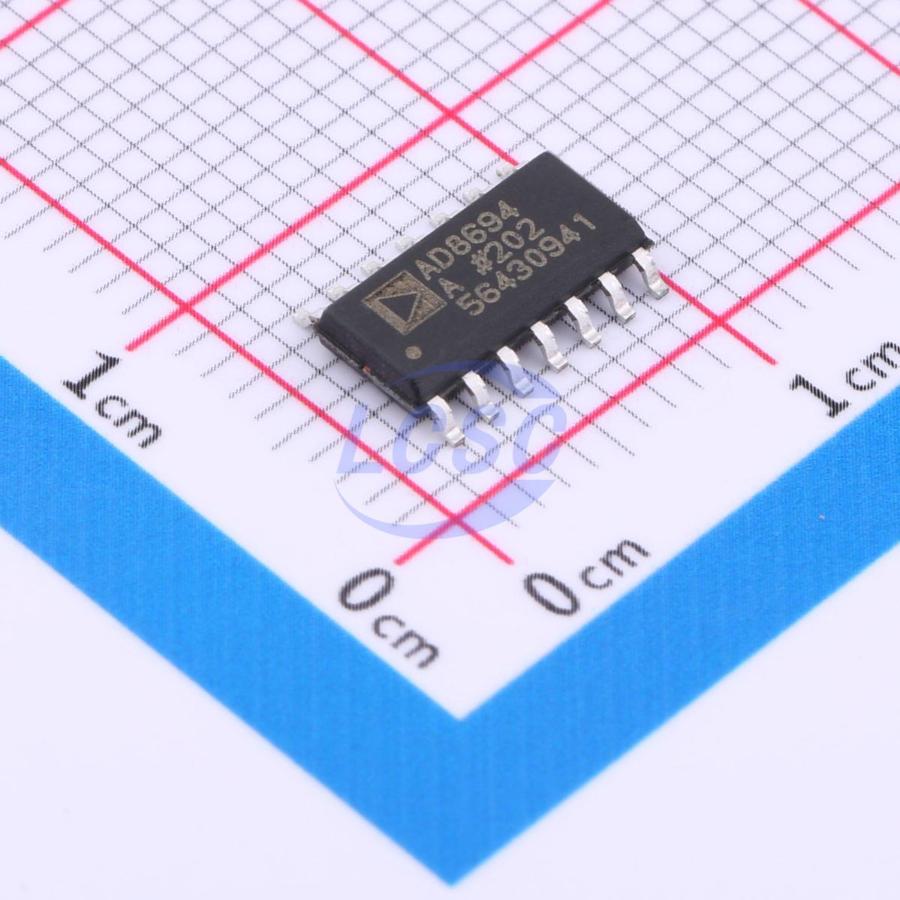

The AD8694ARZ from Analog Devices is a quad, rail-to-rail output, single-supply operational amplifier. It is designed for low cost and low noise applications, featuring a wide bandwidth of 10 MHz and very low input bias currents.
Key electrical characteristics include a typical offset voltage of 400 µV, low offset voltage drift of 6 µV/°C maximum, and low noise of 8 nV/√Hz. The amplifier operates from a single supply voltage ranging from 2.7 V to 6 V, making it suitable for battery-powered instrumentation and portable devices.
This quad op-amp is available in a 14-lead SOIC surface mount package. It is specified for operation over an extended industrial temperature range of -40°C to +125°C. Applications include photodiode amplification, battery-powered instrumentation, medical instruments, sensors, and portable audio devices.
The AD8694ARZ combines low offset, low noise, and wide bandwidth, making it a versatile choice for various analog signal processing tasks.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.92 | $2.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD8694ARZ operates on a single supply voltage ranging from 2.7 V to 6 V.
The AD8694ARZ is housed in a 14-SOIC surface-mount package.
The component functions reliably within an extended industrial temperature range of −40°C to +125°C.
The typical offset voltage is 400 µV.
The amplifier provides a typical bandwidth of 10 MHz.
The maximum input bias current is 1 pA.
The typical noise density is 8 nV/√Hz.
