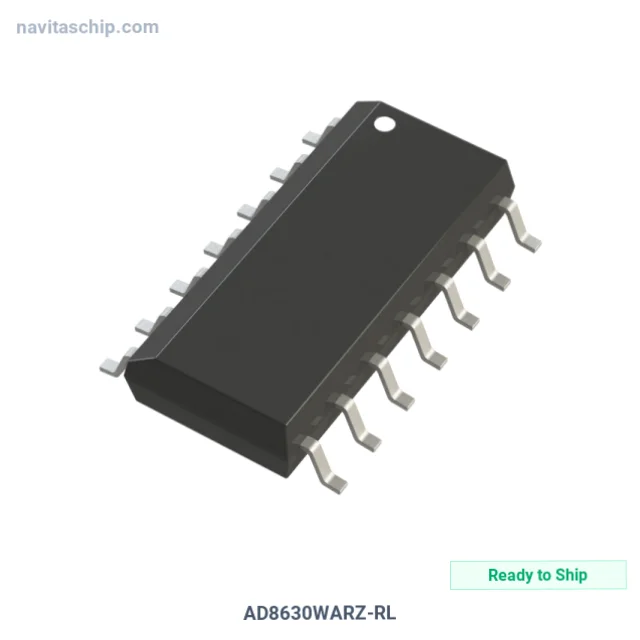

AD8630WARZ-RL The AD8630WARZ-RL is a Zero-Drift Operational Amplifier from Analog Devices Inc. It features a Rail-to-Rail output and operates within a supply voltage range of 2.7V to 5V.
Mfr Part #:

AD8630WARZ-RL

Available from 1 distributors
Mfr Name: ADI Electronics
ADI Electronics
The AD8630WARZ-RL is a Zero-Drift Operational Amplifier from Analog Devices Inc. It features a Rail-to-Rail output and operates within a supply voltage range of 2.7V to 5V.
✓ Total Stock: 7,500 pcs
$ Price Range: $2.22

AD8630WARZ-RL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Rayichip ✓
Non-Authorised Inventory information
7,500 pcs
On Request
7500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AD8630WARZ-RL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Amplifier Type
Mounting Type
Number of Circuits
Operating Temperature
Output Type
Slew Rate
Supplier Device Package
View Similar Products (0)

AD8630WARZ-RL Description

Short technical summary and product information.

The AD8630WARZ-RL is an operational amplifier manufactured by Analog Devices Inc. This zero-drift amplifier offers a rail-to-rail output and is designed for applications requiring high precision. It operates with a supply voltage span from 2.7V to 5V.



Key electrical specifications include a low input bias current of 30 pA and an input offset voltage of 1 µV. The amplifier provides a slew rate of 1V/µs and a gain bandwidth product of 2.5 MHz. It is housed in a 14-SOIC package suitable for surface mounting.



The device operates across a temperature range of -40°C to 125°C. It is supplied in a Tape & Reel (TR) package. Environmental compliance includes RoHS3 compliance and an MSL rating of 1.

AD8630WARZ-RL Quick Information

Product Type: Operational Amplifier
Canonical Name: Analog Devices Inc. AD8630WARZ-RL Operational Amplifier
Subcategory: Audio Special Purpose

AD8630WARZ-RL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AD8630WARZ-RL Estimated Pricing

Qty Low High
1+ $2.22 $2.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

AD8630WARZ-RL Features

  • Zero-drift operational amplifier.
  • Rail-to-rail output type.
  • Low input offset voltage of 1 µV.
  • 2.5 MHz gain bandwidth product.
  • Surface mountable 14-SOIC package.

AD8630WARZ-RL Applications

  • Suitable for precision instrumentation amplifiers.
  • Ideal for high-accuracy audio signal processing.
  • Used in medical measurement equipment.
  • Applicable in sensor signal conditioning circuits.
  • Suitable for low-offset, high-precision applications.

AD8630WARZ-RL FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the AD8630WARZ-RL?

The operating temperature range is -40°C to 125°C.

What type of package is the AD8630WARZ-RL in?

The AD8630WARZ-RL is in a 14-SOIC package.

What is the RoHS status of the AD8630WARZ-RL?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the AD8630WARZ-RL?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.

What is the REACH status for the AD8630WARZ-RL?

The REACH status is REACH Unaffected.

What is the output type of the AD8630WARZ-RL operational amplifier?

The output type is Rail-to-Rail.

What is the input offset voltage for the AD8630WARZ-RL?

The input offset voltage is 1 µV.
