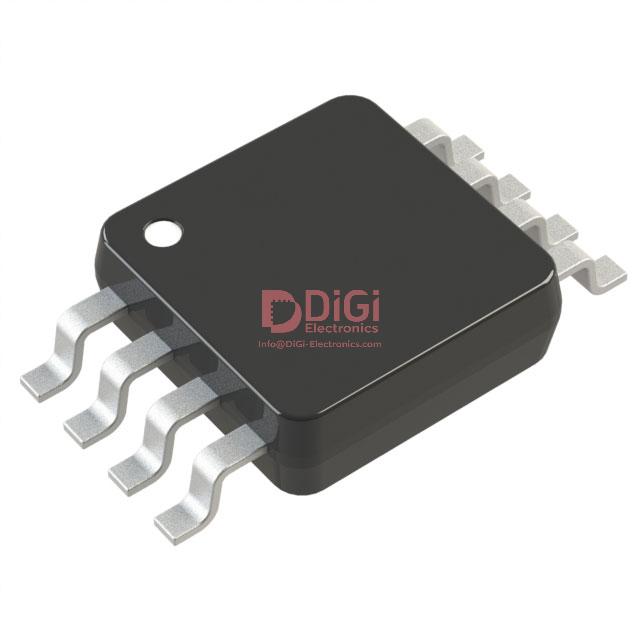

AD8626ARMZ-REEL The Analog Devices AD8626ARMZ-REEL is a J-FET amplifier featuring 2 circuits and Rail-to-Rail output. It operates with a supply voltage span from 5V to 26V.
Mfr Part #:

AD8626ARMZ-REEL

Available from 1 distributors
Mfr Name: AD
AD
The Analog Devices AD8626ARMZ-REEL is a J-FET amplifier featuring 2 circuits and Rail-to-Rail output. It operates with a supply voltage span from 5V to 26V.
✓ Total Stock: 100 pcs
$ Price Range: $1.23

AD8626ARMZ-REEL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AD8626ARMZ-REEL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Amplifier Type
Lead Spacing
Lead Style
Mounting Type
Number of Circuits
Operating Temperature
Output Type
Slew Rate
Tape & Reel
View Similar Products (0)

AD8626ARMZ-REEL Description

Short technical summary and product information.

The AD8626ARMZ-REEL from Analog Devices is a high-performance J-FET amplifier designed for demanding applications. This component features two independent amplifier circuits within a single package, offering a Rail-to-Rail output for maximum dynamic range.



Key electrical specifications include a slew rate of 5V/µs and a gain bandwidth product of 5 MHz, making it suitable for signal amplification tasks requiring good frequency response. The amplifier exhibits a low input bias current of 0.25 pA and an input offset voltage of 350 µV, ensuring signal integrity.



Designed for versatility, the AD8626ARMZ-REEL operates over a wide supply voltage range, from a minimum of 5V to a maximum of 26V. The device has a typical supply current of 710µA per channel. It is housed in a compact 8-MSOP surface-mount package, suitable for space-constrained designs.



This amplifier is specified for operation in industrial temperature ranges from -40°C to 85°C. Its robust design and specifications make it a reliable choice for various analog signal processing applications.

AD8626ARMZ-REEL Quick Information

Product Type: J-FET Amplifier
Series: AD8626
Canonical Name: AD8626ARMZ-REEL J-FET Amplifier, 2 Circuit, Rail-to-Rail
Subcategory: Instrumentation, Op Amps, Buffer Amps

AD8626ARMZ-REEL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

AD8626ARMZ-REEL Estimated Pricing

Qty Low High
1+ $1.23 $1.23

Estimated market price range - modelled values for guidance only, not live distributor offers.

AD8626ARMZ-REEL Features

  • Dual J-FET input operational amplifier.
  • Rail-to-Rail output capability.
  • High slew rate of 5V/µs.
  • Wide gain bandwidth product of 5 MHz.
  • Low input bias current of 0.25 pA.

AD8626ARMZ-REEL Applications

  • Suitable for precision signal amplification.
  • Ideal for low-power analog circuits.
  • Used in data acquisition systems.
  • Effective in sensor signal conditioning.

AD8626ARMZ-REEL FAQs

7 frequently asked questions generated from this part’s specifications.
What is the slew rate of the AD8626ARMZ-REEL?

The slew rate of the AD8626ARMZ-REEL is 5V/µs.

What is the gain bandwidth product for this amplifier?

The gain bandwidth product for the AD8626ARMZ-REEL is 5 MHz.

What is the input bias current?

The input bias current for the AD8626ARMZ-REEL is 0.25 pA.

What is the operating temperature range?

The operating temperature range for the AD8626ARMZ-REEL is -40°C to 85°C.

What package type is the AD8626ARMZ-REEL supplied in?

The AD8626ARMZ-REEL is supplied in an 8-MSOP package.

What is the RoHS status?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL)?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.
