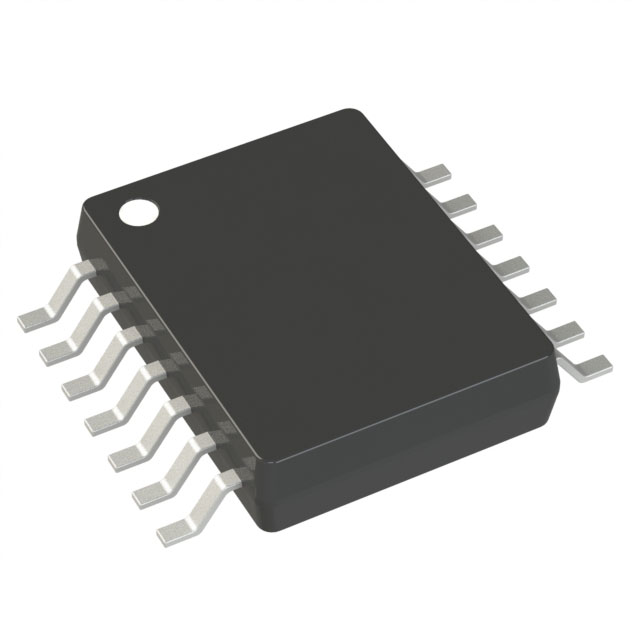

AD8609ARUZ The AD8609ARUZ from Analog Devices Inc. is a 4-circuit CMOS amplifier. It features Rail-to-Rail output and operates over a wide supply voltage range.
Mfr Part #:

AD8609ARUZ

Available from 2 distributors
Mfr Name: AD
AD
The AD8609ARUZ from Analog Devices Inc. is a 4-circuit CMOS amplifier. It features Rail-to-Rail output and operates over a wide supply voltage range.
✓ Total Stock: 3,665 pcs
$ Price Range: $1.17

AD8609ARUZ Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
3,500 pcs
On Request
3500 pcs On Request 1 On Request On Request 22+ On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
165 pcs
On Request
165 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AD8609ARUZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Amplifier Type
Lead Style
Mounting Type
Number of Circuits
Operating Temperature
Output Type
SVHC Present
Slew Rate
Storage Temperature
Supply Current
View Similar Products (0)

AD8609ARUZ Description

Short technical summary and product information.

The AD8609ARUZ is a 4-circuit CMOS amplifier manufactured by Analog Devices Inc. This device offers Rail-to-Rail output capabilities, making it suitable for a variety of applications requiring precise signal amplification.



Key electrical specifications include a slew rate of 0.1V/µs and a gain bandwidth product of 400 kHz. The amplifier operates with a supply voltage span from 1.8V to 5V, and consumes a low supply current of 40µA per channel. The input offset voltage is a mere 12 µV, with an input bias current of 0.2 pA.



Designed for surface mounting, the AD8609ARUZ comes in a 14-TSSOP package. Its operating temperature range is from -40°C to 125°C, ensuring reliable performance in diverse environmental conditions. The RoHS status is RoHS3 Compliant, and it has a Moisture Sensitivity Level (MSL) of 1.

AD8609ARUZ Quick Information

Product Type: Amplifier
Series: AD8609
Canonical Name: AD8609ARUZ 4 Circuit Rail-to-Rail CMOS Amplifier
Subcategory: Amplifiers

AD8609ARUZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AD8609ARUZ Estimated Pricing

Qty Low High
1+ $1.17 $1.17

Estimated market price range - modelled values for guidance only, not live distributor offers.

AD8609ARUZ Features

  • Four-circuit CMOS amplifier design.
  • Rail-to-Rail output for maximum dynamic range.
  • Wide operating supply voltage from 1.8V to 5V.
  • Low input offset voltage of 12 µV.
  • Surface mount 14-TSSOP package.

AD8609ARUZ Applications

  • Suitable for low-voltage signal processing.
  • Ideal for battery-powered devices.
  • Used in portable instrumentation.
  • General purpose analog signal conditioning.

AD8609ARUZ FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating supply voltage range?

The AD8609ARUZ operates from a minimum of 1.8 volts to a maximum of 5 volts.

What package type does this component use?

It is housed in a 14-TSSOP surface mount package with a 4.40 mm width.

What is the specified operating temperature range?

The device functions reliably between -40 degrees Celsius and 125 degrees Celsius.

How many amplifier circuits are included in this package?

The component contains four independent operational amplifier circuits.

What is the maximum output current per channel?

Each amplifier channel can source or sink up to 70 milliamperes.

What is the gain bandwidth product specification?

The device provides a gain bandwidth product of 400 kilohertz.
