| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,000 pcs
|
15000 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request | |
|
11,000 pcs
|
11000 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output Type | |
| Slew Rate | |
| Supply Current | |
| Tape & Reel |
The AD8603AUJZ-REEL7 is a single-circuit, general-purpose operational amplifier manufactured by Analog Devices Inc. This component is designed for a wide range of applications, offering a Rail-to-Rail output stage for maximum dynamic range.
Key electrical specifications include a Gain Bandwidth Product of 400 kHz and a low input bias current of 0.2 pA. The amplifier operates with a supply voltage span from 1.8 V to 5 V, drawing a minimal supply current of 40 µA. Its slew rate is 0.1 V/µs, and it can deliver an output current of 70 mA per channel.

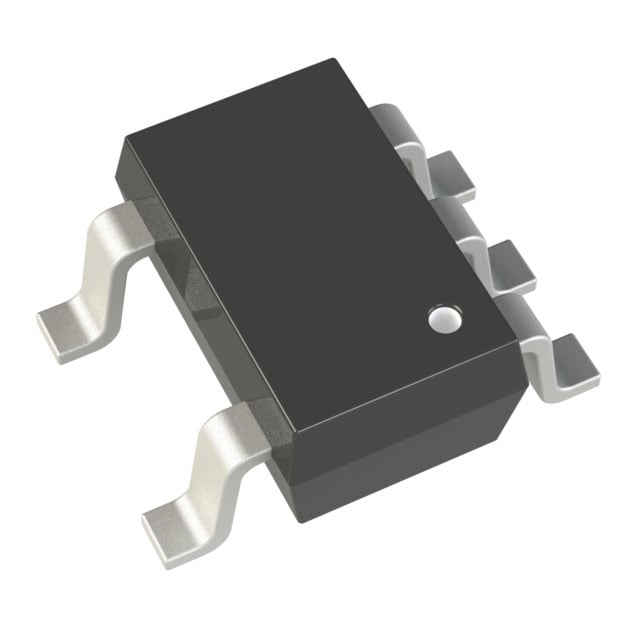

The device is housed in a compact TSOT-23-5 surface-mount package, making it suitable for space-constrained designs. The operating temperature range is from -40°C to 125°C, ensuring reliable performance in various environmental conditions.
This amplifier is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1. Its REACH status is unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.23 | $1.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to +125°C.
The package type is TSOT-23-5, surface mount.
The supply voltage range is 1.8V to 5V.
The gain bandwidth product is 400 kHz.
Yes, the output type is rail-to-rail.
