| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
119 pcs
|
119 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Output Type | |
| Slew Rate | |
| Supply Current | |
| Tape & Reel |
The Analog Devices Inc. AD8601ART-REEL7 is a general-purpose operational amplifier designed for a wide range of applications. This CMOS amplifier features a rail-to-rail output stage, enabling it to achieve full output voltage swing. It boasts a gain bandwidth product of 8.4 MHz and a slew rate of 6V/µs, making it suitable for signal processing tasks requiring moderate speed.
With a low input bias current of 0.2 pA and an input offset voltage of 80 µV, the AD8601ART-REEL7 provides accurate signal amplification. It operates from a supply voltage range of 2.7V to 5.5V and consumes a supply current of 750 µA. The amplifier is capable of delivering an output current of 50 mA per channel.

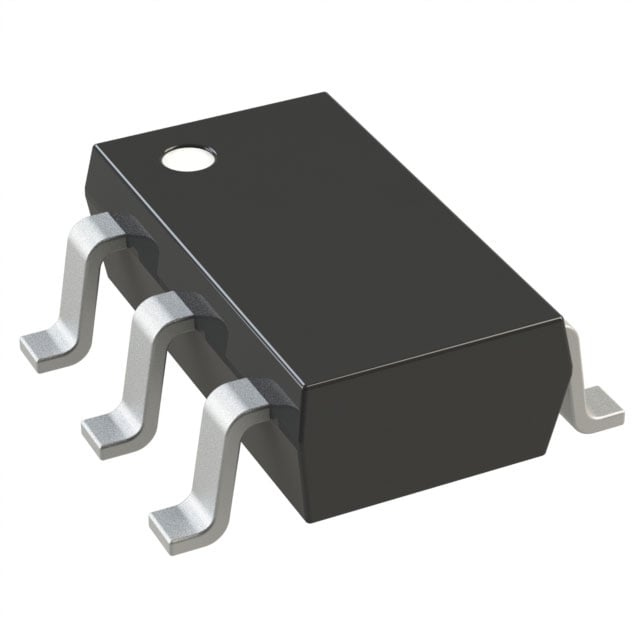

This component is housed in a surface-mount SC-74A, SOT-753 package, facilitating integration into compact electronic designs. The operating temperature range is from -40°C to 125°C, ensuring reliable performance in various environmental conditions. The DigiTrim® series designation suggests potential for precise trimming or calibration.
The AD8601ART-REEL7 is RoHS3 compliant and falls under REACH Unaffected status, indicating adherence to environmental regulations. Its Moisture Sensitivity Level (MSL) is 1, signifying unlimited usability under standard conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.7V to 5.5V.
SC-74A and SOT-753, surface mount.
-40°C to +125°C.
8.4 MHz.
6 V/µs.
Rail-to-rail.
1.
