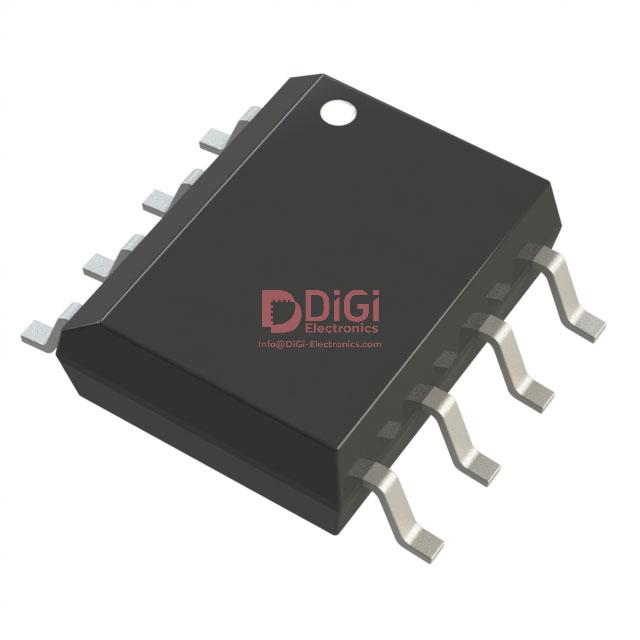

AD8561AR The AD8561AR is a single supply comparator from Analog Devices with a fast 7 ns propagation delay. It operates from 3V to 10V and is available in an 8-SOIC package.
Mfr Part #:

AD8561AR

Available from 1 distributors
Mfr Name: AD
AD
The AD8561AR is a single supply comparator from Analog Devices with a fast 7 ns propagation delay. It operates from 3V to 10V and is available in an 8-SOIC package.
✓ Total Stock: 100 pcs
$ Price Range: $0.36

AD8561AR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AD8561AR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Input Capacitance
Mounting Type
Operating Temperature
Operating Voltage
Quiescent Current
Supplier Device Package
View Similar Products (0)

AD8561AR Description

Short technical summary and product information.

The AD8561AR is an ultrafast single supply comparator from Analog Devices, designed for high-speed applications. It boasts a typical propagation delay of 7 ns at 5V, making it suitable for timing circuits, clock recovery, and line receivers.



This comparator supports single supply operation from 3V to 10V and dual supply operation from ±1.5V to ±5V. It features a low input bias current and a wide common-mode input range that includes the negative supply rail. The input offset voltage is a maximum of 7mV at 5V, with a drift of 4 μV/°C.



The AD8561AR is specified for the industrial temperature range of -40°C to +85°C. It comes in an 8-SOIC surface mount package, facilitating integration into compact designs. Its latch function allows for storing the output state, adding flexibility in control applications.



Key electrical characteristics include a typical common-mode rejection ratio (CMRR) of 85dB and a large signal voltage gain (AVO) of 3000 V/V. The input capacitance is 3pF. The device also includes logic thresholds for its latch enable input.

AD8561AR Quick Information

Product Type: Comparator
Canonical Name: AD8561AR Single Supply Comparator
Subcategory: General Purpose

AD8561AR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AD8561AR Estimated Pricing

Qty Low High
1+ $0.36 $0.36

Estimated market price range - modelled values for guidance only, not live distributor offers.

AD8561AR Features

  • Ultrafast 7 ns propagation delay.
  • Single supply operation from 3V to 10V.
  • Wide input common-mode range.
  • Latch function included.
  • Industrial temperature range operation.

AD8561AR Applications

  • Ideal for high-speed timing circuits.
  • Suitable for clock recovery applications.
  • Used in line receivers.
  • Applicable to digital communications.
  • Useful for phase detectors.

AD8561AR FAQs

4 frequently asked questions generated from this part’s specifications.
What is the propagation delay of the AD8561AR comparator?

The typical propagation delay of the AD8561AR is 7 ns at 5V.

What is the operating voltage range for the AD8561AR?

The AD8561AR supports single supply operation from 3V to 10V and dual supply operation from ±1.5V to ±5V.

What is the operating temperature range for the AD8561AR?

The AD8561AR is specified for an operating temperature range of -40°C to +85°C.

What package type is the AD8561AR available in?

The AD8561AR is available in an 8-SOIC surface mount package.
