| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Lead Style | |
| Output Current | |
| Output Type | |
| SVHC Present | |
| Slew Rate | |
| Supply Current | |
| Tape & Reel |

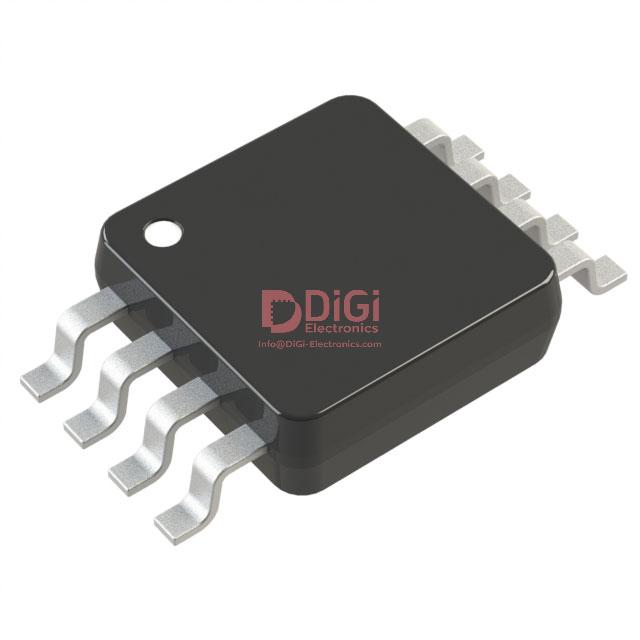

The Analog Devices AD8542ARMZ-REEL is a versatile general-purpose operational amplifier designed for a wide range of applications. This dual-circuit amplifier offers a gain bandwidth product of 1 MHz and a slew rate of 0.92V/µs, ensuring efficient signal processing.
Key electrical characteristics include a low input bias current of 4 pA and an input offset voltage of 1 mV. The amplifier operates with a minimum supply voltage span of 2.7 V and provides a rail-to-rail output. Its supply current is rated at 45µA per channel, with an output current capability of 30 mA per channel.
The AD8542ARMZ-REEL comes in an 8-MSOP package, suitable for space-constrained designs. Its general-purpose nature makes it a reliable choice for various analog circuit implementations where precise amplification and signal conditioning are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 circuits are included in the 8-MSOP package.
The output type is rail-to-rail.
The gain bandwidth product is 1 MHz.
The slew rate is 0.92 V/µs.
The input bias current is 4 pA.
The input offset voltage is 1 mV.
The total supply current is 45 µA for both channels.
