| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,307 pcs
|
2307 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Lead Spacing | |
| Lead Style | |
| Number of Circuits | |
| Output Type | |
| Slew Rate | |
| Tape & Reel |

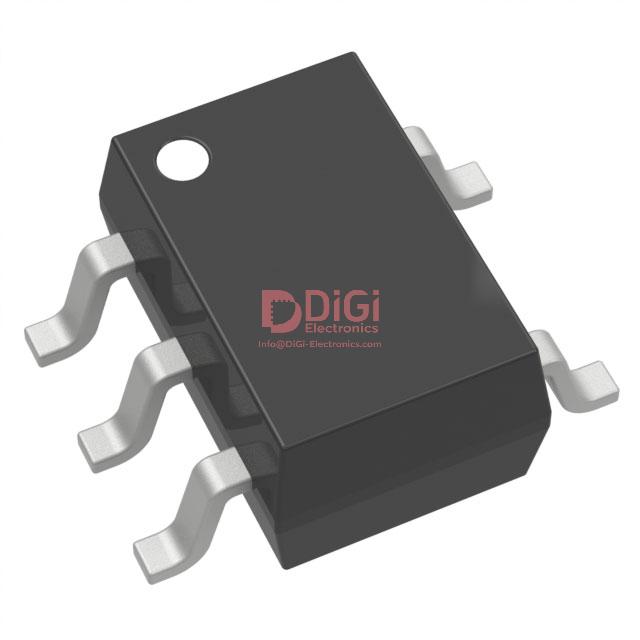

The AD8515AKSZ-REEL7 is a single-circuit operational amplifier designed for general-purpose applications. Manufactured by Analog Devices Inc., this component offers a rail-to-rail output stage, enhancing its dynamic range.
Key electrical specifications include a gain bandwidth product of 5 MHz and a slew rate of 2.7V/µs. It requires a low supply current of 410µA and has an input bias current of 5 pA. The input offset voltage is typically 1 mV, and it can deliver up to 20 mA of output current per channel.
This operational amplifier is designed to operate within a voltage supply range of 1.8V to 5V. It comes in a compact SC-70-5 package, suitable for space-constrained designs. The component is supplied on tape and reel, facilitating automated assembly processes.
Ideal for various analog signal processing tasks, the AD8515AKSZ-REEL7 provides reliable performance for general-purpose amplification needs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 MHz.
2.7 V/µs.
1.8 V to 5 V.
SC-70-5.
5 pA.
Yes, it has rail-to-rail output.
1 circuit.
