| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,412 pcs
|
9412 pcs | On Request | 1 | On Request | On Request | 09+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Bandwidth | |
| Industrial Grade | |
| Input Capacitance | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Storage Temperature | |
| Supply Current | |
| Supply Voltage | |
| Tape & Reel |
The Analog Devices AD8506ACBZ-REEL7 is a general-purpose, 2-channel instrumentation operational amplifier designed for various electronic applications. It offers a high Common Mode Rejection Ratio (CMRR) of 105 dB and a low input bias current of 1pA, making it suitable for precision measurements.
This op-amp operates with a supply voltage range of 1.8V to 5V (single) or ±0.9V to ±2.5V (dual), with a typical operating supply voltage of 3V. It delivers an output current of 45mA per channel and has a bandwidth of 95 kHz. The device features rail-to-rail output and a voltage gain of 120dB.

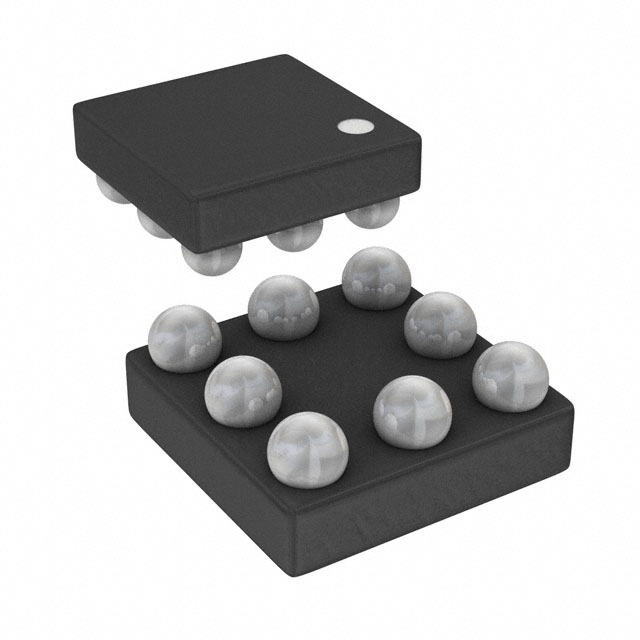

Packaged in an 8-UFBGA, WLCSP, the AD8506ACBZ-REEL7 is designed for surface mounting. It operates within a temperature range of -40°C to 125°C. The component is supplied in tape and reel packaging, suitable for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating supply voltage is 3V.
It is supplied in an 8-UFBGA, WLCSP package.
The operating temperature range is -40°C to 125°C.
Yes, it is RoHS Compliant.
