| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
51 pcs
|
51 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| SVHC Present | |
| Slew Rate | |
| Supplier Device Package |
The Analog Devices Inc. AD843JN is a single-circuit, general-purpose operational amplifier designed for a wide range of applications. It operates with a supply voltage span from 9V to 36V and offers a gain bandwidth product of 34 MHz.
Key electrical characteristics include a slew rate of 250V/µs, an input offset voltage of 1 mV, and an input bias current of 50 pA. The amplifier can deliver up to 50 mA of output current per channel and consumes 12mA of supply current. It is specified for operation within a temperature range of 0°C to 70°C.

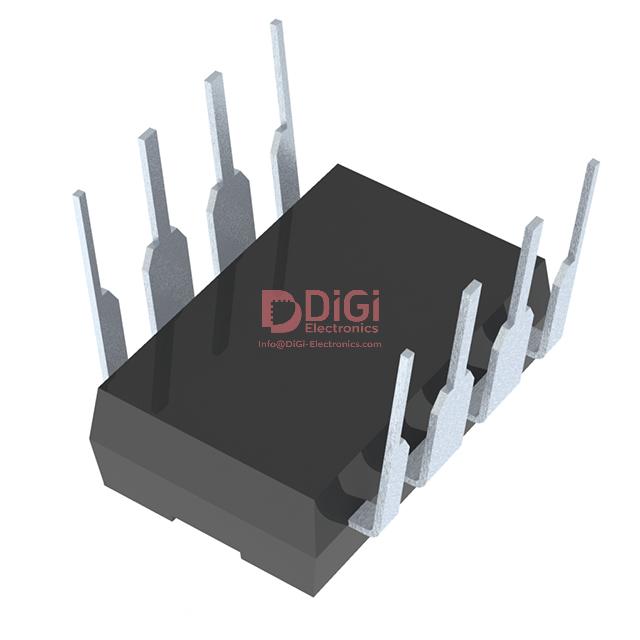

This component is housed in an 8-PDIP package and is designed for through-hole mounting. The 8-DIP package has a standard width of 0.300 inches (7.62mm).
This part is suitable for various electronic circuits requiring reliable amplification and signal conditioning.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD843JN operates from a supply voltage range of 9 V to 36 V.
The operating temperature range is 0°C to 70°C.
The AD843JN is offered in an 8-DIP (0.300", 7.62mm) package, also known as 8-PDIP.
The slew rate is 250 V/µs.
The gain bandwidth product is 34 MHz.
The input bias current is 50 pA.
The output current per channel is 50 mA.
